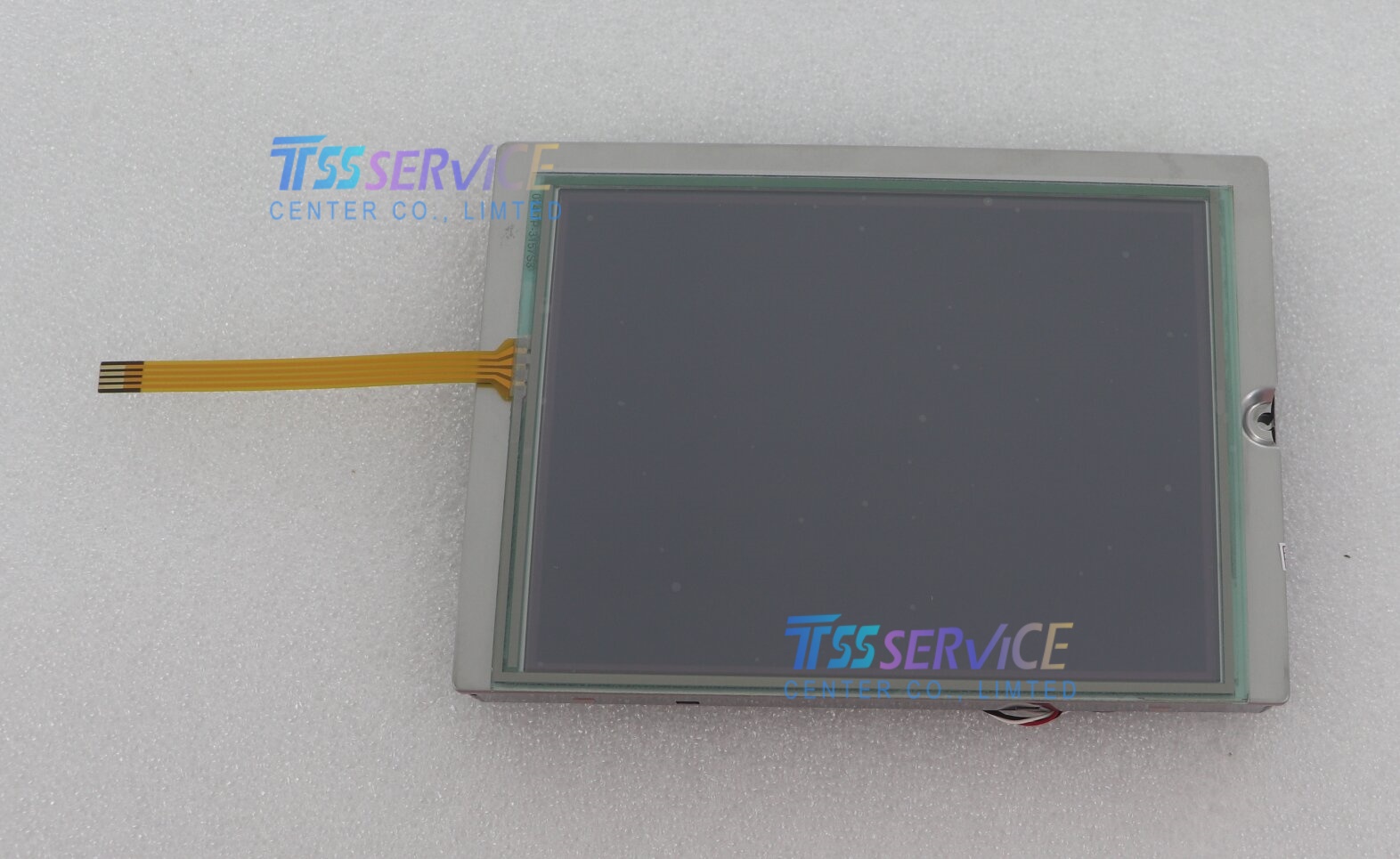

The KCG057QVLDJ-G000 is a 5.7-inch CSTN (Color Super Twisted Nematic) - LCD display module manufactured by Kyocera Corporation. It is designed for industrial applications that require a reliable and durable color display. This module features a QVGA resolution and comes integrated with an LED backlight and a resistive touch panel .
| Brand |
Kyocera |
| Model P/N |
KCG057QVLDJ-G000 |
| Diagonal Size |
5.7" |
| Panel Type |
CSTN-LCD, LCM |
| Resolution |
320(RGB)×240, QVGA 70PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.2(W)×86.4(H) mm |
| Bezel Opening |
119.4(W)×90.6(H) mm |
| Outline Dim. |
144(H)×104.8(V)×15.3(D) mm |
| Treatment |
Glare (Haze 0%) |
| Luminance |
280 cd/m² (Typ.) |
| Contrast Ratio |
55:1 (Typ.) (TM) |
| Response Time |
180/170 (Typ.)(Tr/Td) |
| Viewing Angle |
50/50/20/35 (Typ.)(CR≥2) |
| Operating Mode |
STN, Normally Black, Transmissive |
| Support Color |
Color 36% NTSC |
| Light Source |
WLED [3 strings], 50K hours , W/O Driver |
| Weight |
220g (Typ.) |
| Frame Rate |
75Hz |
| Touch Panel |
4-wire Resistive Touch |
| Interface Type |
Parallel Data (1ch, 8-bit), 20 pins Connector |
| Power Supply |
3.3/5.0V (Typ.)(VDD) |
| Environment |
Operating Temperature: 0 ~ 60 °C; Storage Temperature: -20 ~ 60 °C |
Typical Applications
This LCD module is specifically engineered for use in electronic devices and industrial machinery. Kyocera outlines its intended use in areas such as :
-
Audio Control: Equipment interfaces.
-
Office Automation: Machines like printers or copiers.
-
Industrial Control: Human-machine interfaces (HMIs) for factory equipment.
-
Home Appliances: Control panels for high-end domestic appliances.
