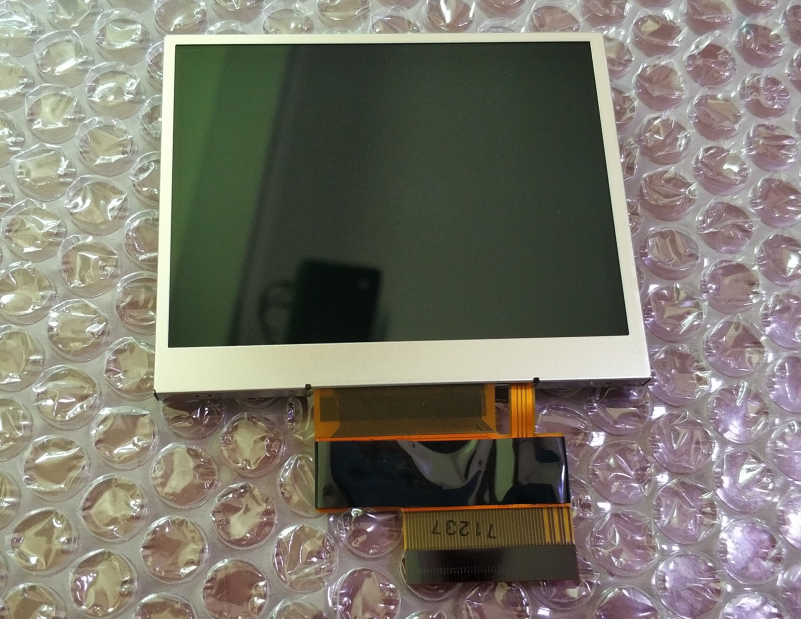

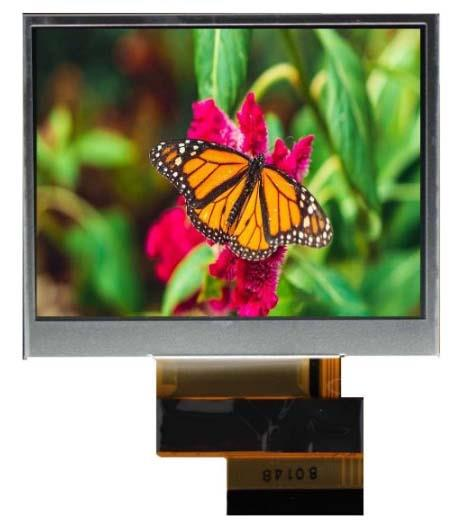

New TCG035QVLPDANN-AN50 320*240 3.5-inch for Kyocera LCD Display Panel

Name: New TCG035QVLPDANN-AN50 320*240 3.5-inch for Kyocera LCD Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG035QVLPDANN-AN50
Price: 80 USD
Availability: InStock

SKU: TCG035QVLPDANN-AN50

Model:TCG035QVLPDANN-AN50
Size:3.5"
Resolution:320x240
Interface:Parallel RGB (1 ch, 8-bit) + SPI , 50 pins , FPC
Temperature(℃):-20 ~ 70 °C

0.0 (0 Reviews)

0 Sold

~~$85.00~~ $80.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera Display TCG035QVLPDANN-AN50 General Features
TCG035QVLPDANN-AN50 is a new 3.5-inch TFT-LCD display panel, offering a clear QVGA resolution of 320 × 240 pixels for crisp text and graphics. Engineered for reliable performance in industrial and commercial environments, this compact panel is suitable for integration into handheld devices, medical equipment, control interfaces, and portable instruments. Designed for durability and stable operation, it provides consistent visual output and robust construction. This panel offers a dependable and cost-effective solution for applications requiring a compact size, clear display quality, and long-term reliability in demanding conditions.

Brand	KYOCERA
Model	TCG035QVLPDANN-AN50
Panel-type	LCM , a-Si TFT-LCD
Size	3.5"
Resolution	320×240 QVGA
Aspect Ratio	4:3 (H:V)
Outline Size	76.9(W)×63.9(H) mm
Display Mode	STN, Black/White (Negative), Transmissive
Brightness	1000 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	8/22 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Display Colors	16.2M 50% NTSC
Lamp Type	WLED [2 strings] , 60K hours
Signal Interface	Parallel RGB (1 ch, 8-bit) + SPI , 50 pins , FPC
Touch Screen	Without
Input Voltage	3.3V (Typ.)
Operating Temp	-20 ~ 70 °C
Storage Temp	-30 ~ 80 °C

1.Question: How do you package this 3.5-inch LCD panel during transport to ensure its safety?
Answer: Each panel is individually sealed in an anti-static bag and placed in a custom shock-absorbing foam tray. The outer box uses thickened rigid cardboard to ensure the product is protected from electrostatic discharge, crushing, and vibration during transit.

2.Question: Does this brand new display come with after-sales service? What if I find dead pixels or it fails to light up upon receipt?
Answer: Yes, we offer a 90-day quality warranty. If you discover functional defects (such as no display or backlight failure) or dead pixels beyond the standard limit upon receipt, we support free replacement or a full refund.
