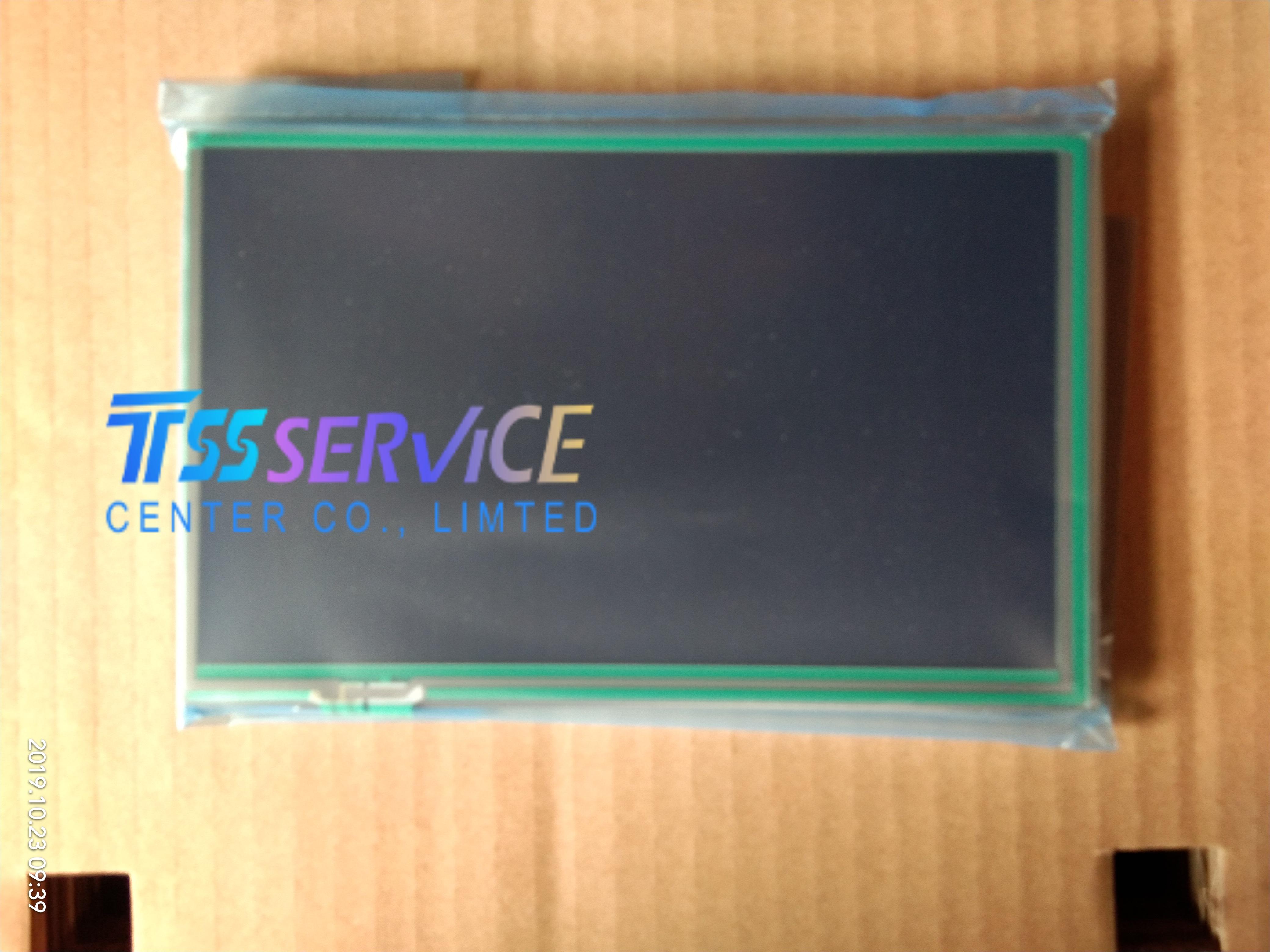

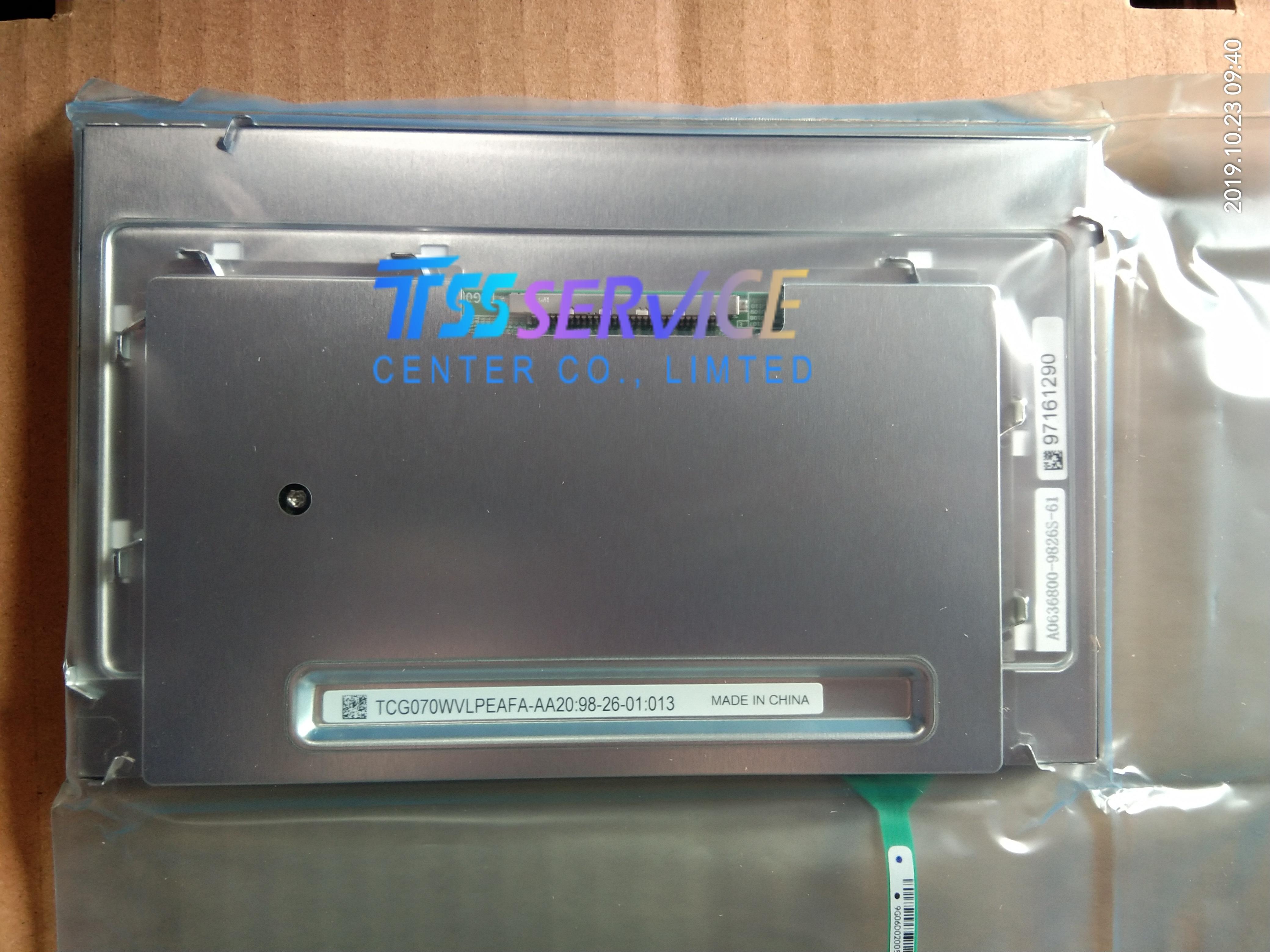

Kyocera TCG070WVLPEAFA-AA20 7.0-Inch 800×480 LCD Panel with 4-Wire Resistive Touch

SKU: TCG070WVLPEAFA-AA20

1,Condition: New,Grade A

2,Description: TCG070WVLPEAFA-AA20 7.0 inch LCD Display Panel

3,Warranty: 90 Days

4,Lead Time: 1-3 Working days

5,Shipping: DHL ,FedEx, EMS , SF express  or by air.

6,Packaging: Bubble pad+Paper box

7,Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)
0 Sold
$135.00 $131.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Kyocera TCG070WVLPEAFA-AA20 7.0-Inch 800×480 LCD Panel  with 4-Wire Resistive Touch
  • Kyocera TCG070WVLPEAFA-AA20 7.0-Inch 800×480 LCD Panel  with 4-Wire Resistive Touch
  • Kyocera TCG070WVLPEAFA-AA20 7.0-Inch 800×480 LCD Panel  with 4-Wire Resistive Touch
  • Kyocera TCG070WVLPEAFA-AA20 7.0-Inch 800×480 LCD Panel  with 4-Wire Resistive Touch
1/1
  • Kyocera TCG070WVLPEAFA-AA20 7.0-Inch 800×480 LCD Panel  with 4-Wire Resistive Touch
  • Kyocera TCG070WVLPEAFA-AA20 7.0-Inch 800×480 LCD Panel  with 4-Wire Resistive Touch
  • Description
The TCG070WVLPEAFA-AA20 is a 7.0-inch diagonal a-Si TFT-LCD module from Kyocera, featuring WVGA (800×480) resolution with a 15:9 aspect ratio. This integrated display solution combines a high-contrast TFT panel with a 4-wire resistive touch panel, making it ideal for interactive industrial and commercial applications.

Parameter Value
Brand Kyocera
Model TCG070WVLPEAFA-AA20
Diagonal Size 7.0 inch
Type a-Si TFT-LCD, LCM
Pixel Number 800(RGB)×480, 15:9, WVGA
Pixel Format RGB Vertical Stripe
Active Area 152.4(H)×91.44(V) mm
Physical Size 165(H)×104.4(V)×11.2(D) mm
Mass 260g
Surface Coating Antiglare, Hard coating (2H)
Luminance 280 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction 12 o'clock
Response Time 5/25 (Typ.)(Tr/Td) ms
Viewing Angle 80/80/60/80 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 262K/16.2M, 49% NTSC
Power Usage 2.64W (Typ.)
Light Source WLED, 70K hrs, With LED Driver
Frame Rate 60Hz
Touch Panel 4-wire Resistive Touch
Interface Type LVDS (1 ch, 6/8-bit), 30 pins Connector
Power Supply 3.3V (Typ.)
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C


Typical Applications

The TCG070WVLPEAFA-AA20 is ideal for interactive industrial and commercial display systems:

Application Area Specific Use Cases
Industrial HMIs Operator panels, machine controllers, PLC interfaces
Medical Equipment Patient monitors, diagnostic devices, bedside terminals
POS Systems Point-of-sale terminals, self-checkout kiosks
Gaming & Amusement Slot machines, arcade games, casino terminals
Test & Measurement Oscilloscopes, function generators, data loggers
Building Automation Thermostats, access control panels, intercoms
Transportation Ticket vending machines, onboard infotainment
Marine Electronics Chartplotters, fish finders, navigation systems
Food Service Kitchen display systems, order entry terminals
