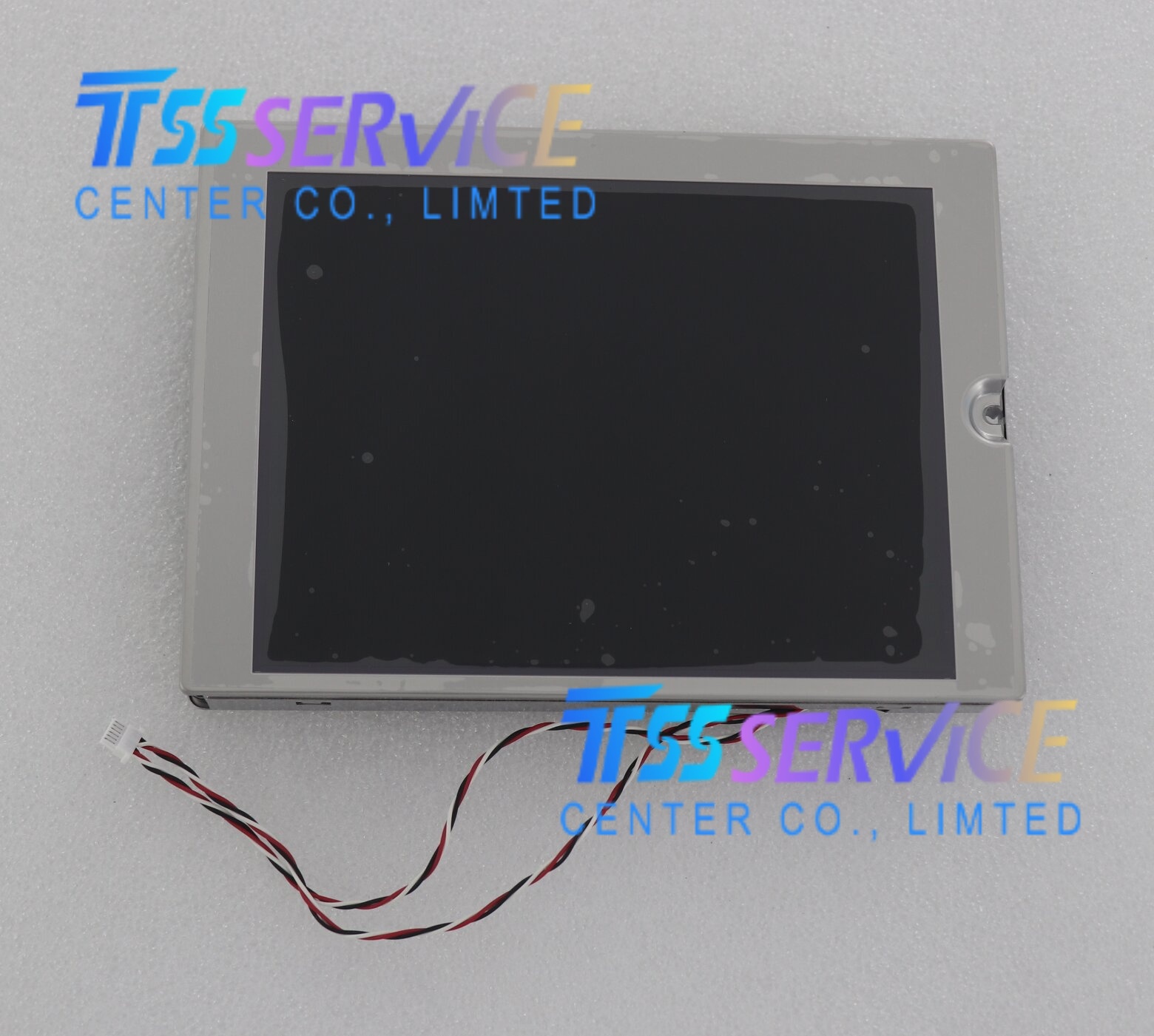

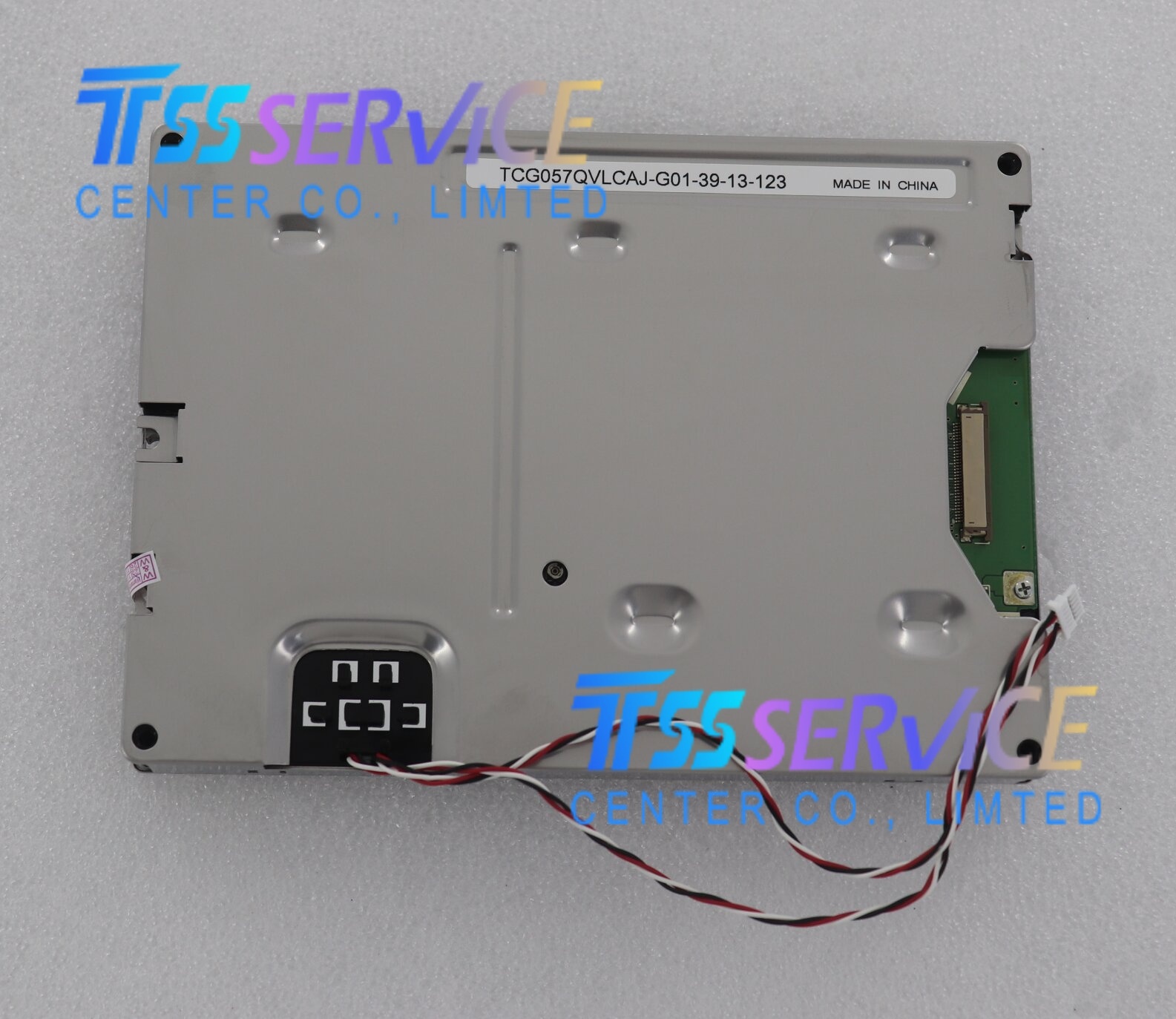

KYOCERA NEW 5.7 inch LCD Display Panel TCG057QVLCAJ-G01-7Y for Industrial
| Parameter |
Specification |
Details / Notes |
| Model Number |

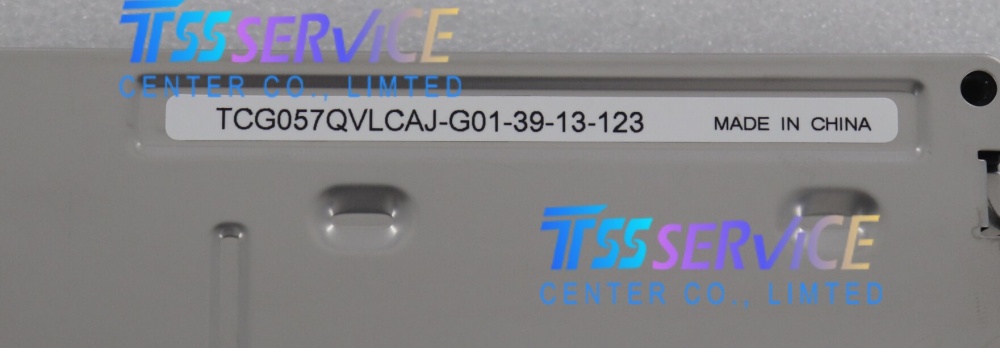

TCG057QVLCAJ-G01-7Y |
Kyocera (Optrex) Industrial LCD Module |
| Screen Size |
5.7 inches |
Diagonal measurement |
| Active Area (AA) |
115.2 × 86.4 mm |
Standard 4:3 aspect ratio |
| Outline Dimensions |
Approx. 144.0 × 104.8 × 9.0 mm |
Includes metal bezel; compact depth |
| Resolution |
640 (RGB) × 480 |
VGA Format |
| Pixel Pitch |
0.18 × 0.18 mm |
RGB Vertical Stripe arrangement |
| Display Mode |
TN (Twisted Nematic) |
Transmissive, Normally White |
| Color Depth |
262K colors |
6-bit per color (18-bit total) |
| Brightness |
400 ~ 500 cd/m² |
Typical (High brightness for indoor/semi-outdoor) |
| Contrast Ratio |
500:1 ~ 700:1 |
Typical (CR ≥ 10) |
| Viewing Angle |
70/70/60/50° |
Typical (Left/Right/Up/Down) at CR≥10 |
| Response Time |
15/25 ms |
Typical (Tr + Td) |
| Backlight Type |
WLED |
White LED Array (Mercury-free) |
| Backlight Life |
70,000+ hours |
Until brightness drops to 50% |

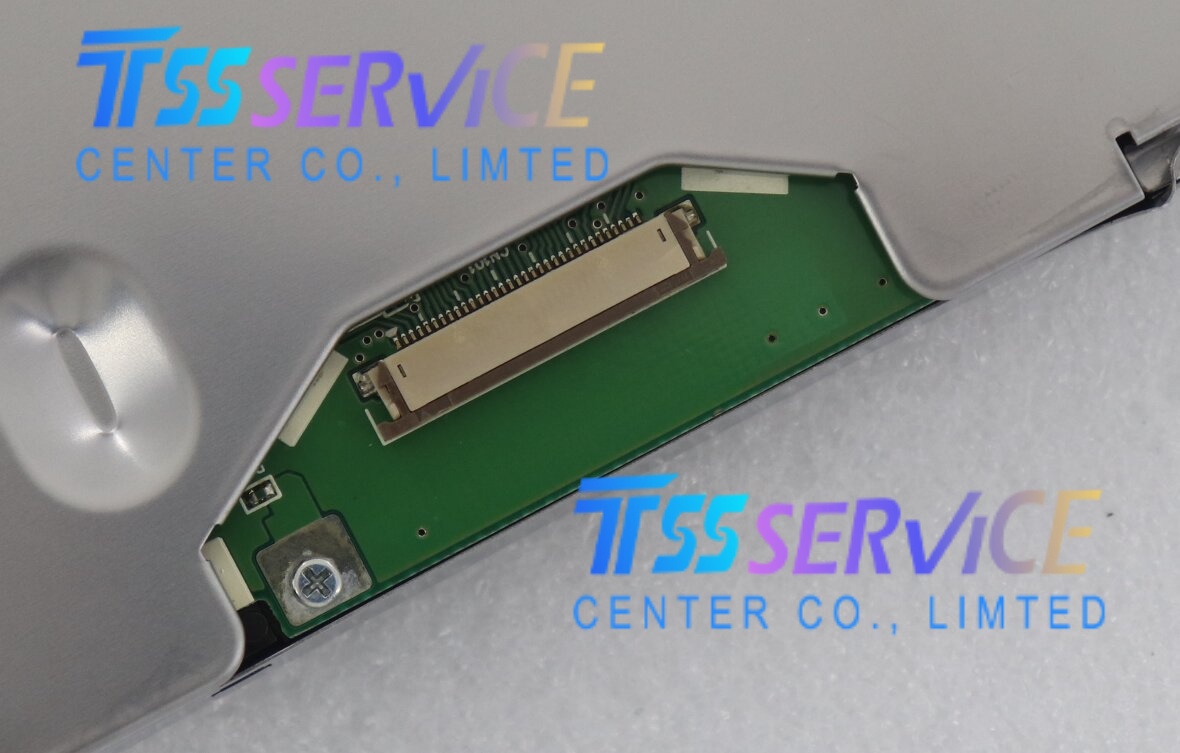

| Interface |
LVDS |
Low-Voltage Differential Signaling (1-channel, 6-bit or 8-bit) |
| Input Voltage |
3.3V |
Logic voltage; Integrated LED Driver (No external inverter needed) |
| Power Consumption |
~2.5W - 3.5W |
Typical (Low power due to LED efficiency) |
| Operating Temp. |
-20°C to +70°C |
Wide Industrial Temperature Range |
| Storage Temp. |
-30°C to +80°C |
Non-operating storage range |
| Weight |
Approx. 250g - 300g |
Lightweight for embedded systems |
| Surface Treatment |
Haze 25%, 3H Hard Coat |
Anti-glare and scratch-resistant |
| RoHS Compliance |
Yes |
Mercury-free and lead-free |
The TCG057QVLCAJ-G01-7Y is targeted at high-reliability sectors where compact size, high brightness, and safety visibility are critical.
-
Transportation & Railway Systems:
- Train Driver Consoles: Used in compact displays for speed, signaling, and system status in modern train cabs. The wide temperature range handles extreme rail environments, while the "Normally White" mode ensures safety readability if power is lost.
- Onboard Passenger Information: Deployed in buses and trams for route maps and announcements. The high brightness ensures visibility even when sunlight enters the vehicle.
-
Medical Instrumentation:
- Portable Patient Monitors: Ideal for handheld vital signs monitors (ECG, SpO2) due to its compact size and low power consumption. The high contrast allows clear waveform viewing in bright hospital rooms.
- Infusion Pumps & Analyzers: Embedded in compact medical devices where reliability and instant-on capability (LED) are essential for patient safety.
-
Industrial Automation & HMI:
- Compact Control Panels: Integrated into small PLC interfaces, robotic controllers, and handheld industrial scanners. The rugged design withstands vibration and dust common on factory floors.
- Process Control Displays: Used in oil & gas and chemical plants for monitoring local valves and sensors, where the wide temperature tolerance is mandatory.
-
Test & Measurement Equipment:
- Portable Analyzers: Built into field service tools for telecommunications and power grids. The low power consumption extends battery life, and the high brightness allows outdoor readability.
- Handheld Oscilloscopes: Provides a clear, responsive display for technicians working in varied lighting conditions.
-
Marine & Aviation:
- Ship Navigation Instruments: Used in compact bridge displays for radar overlays or engine monitoring, resisting humidity and temperature changes.
- Avionics Ground Support: Deployed in portable aircraft maintenance tools and ground handling equipment.
-
Legacy System Modernization (Retrofitting):
- Direct Upgrade: Widely used to replace failing CCFL displays (like TCG057QV1AA) in existing machinery. Since the mechanical dimensions are often identical, manufacturers can upgrade to LED technology (gaining longer life and no inverter failures) without redesigning the enclosure.
