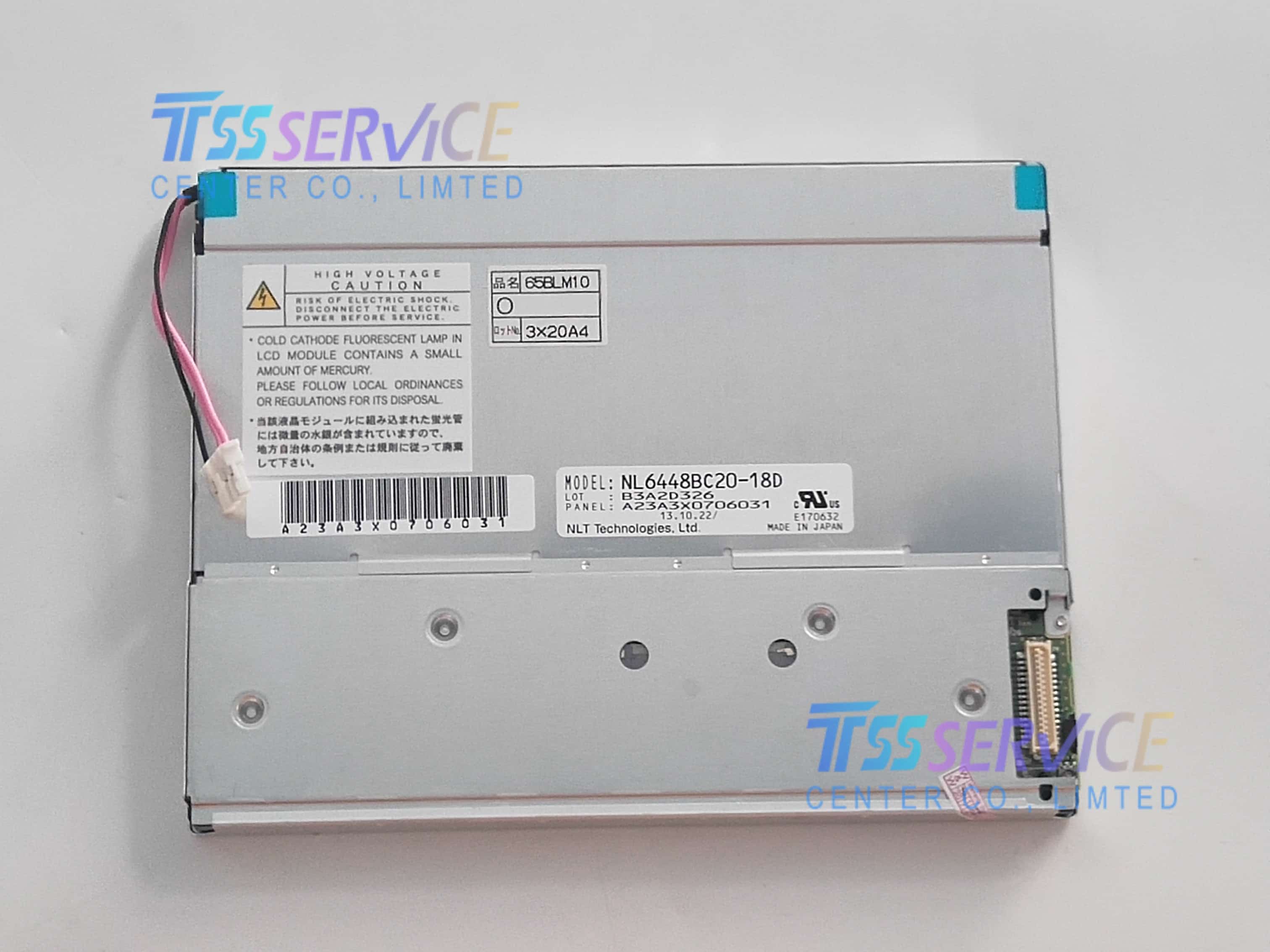

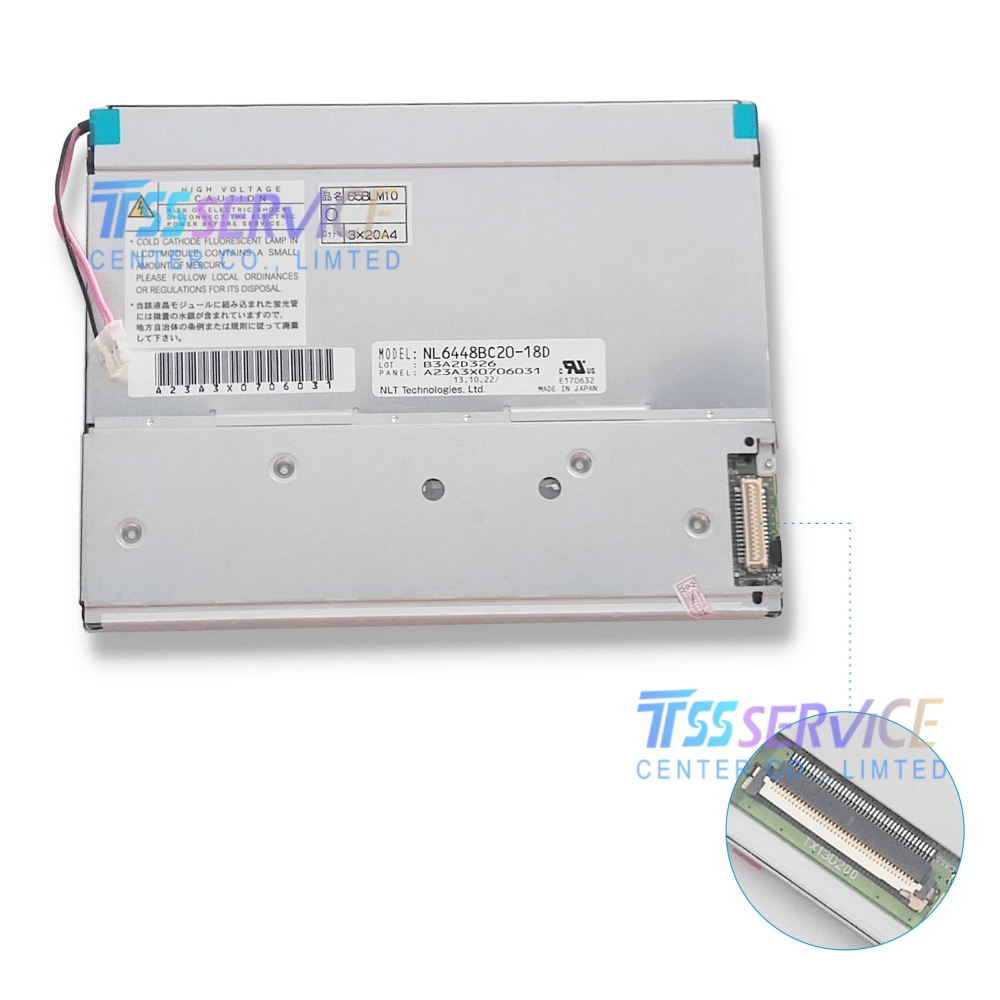

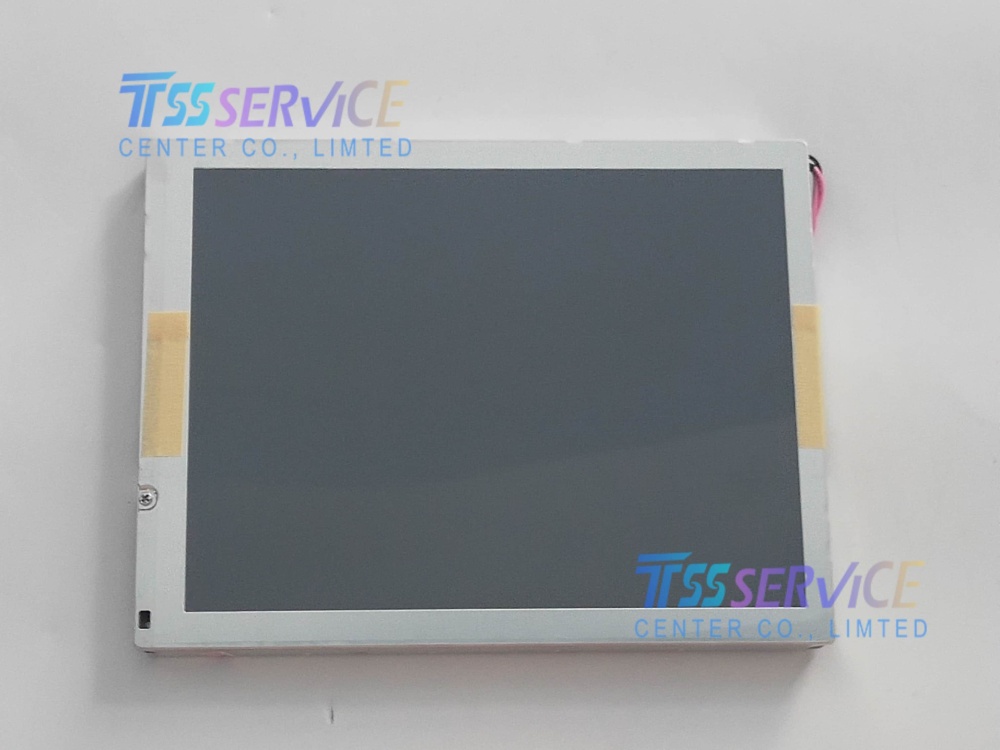

NL6448BC20-18D 6.5inch lcd panel for industrial

Name: NL6448BC20-18D 6.5inch lcd panel for industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL6448BC20-18D
Price: 100 USD
Availability: InStock

SKU: NL6448BC20-18D

Model P/N: NL6448BC20-18D
Diagonal Size: 6.5"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480, VGA 122PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$105.00~~ $100.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The NEC NL6448BC20-18D is a high-performance 6.5-inch industrial-grade TFT LCD module designed for demanding applications requiring reliability and consistent image quality. With its 640×480 VGA resolution and rugged construction, this panel is engineered to withstand challenging environments while delivering clear, stable visual performance.

Parameter	Specification
Model	NL6448BC20-18D
Manufacturer	NEC
Display Type	a-Si TFT LCD, Transmissive
Screen Size	6.5 inches (diagonal)
Active Area	132.48(W)×99.36(H) mm
Resolution	640 × 480 pixels (VGA)
Pixel Format	RGB vertical stripe
Color Depth	262K 40% NTSC
Brightness	400 cd/m² (typical)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Response Time	25 ms (typical)
Backlight Type	CCFL (Cold Cathode Fluorescent Lamp)
Backlight Lifetime	50,000 hours (typical, to 50% brightness)

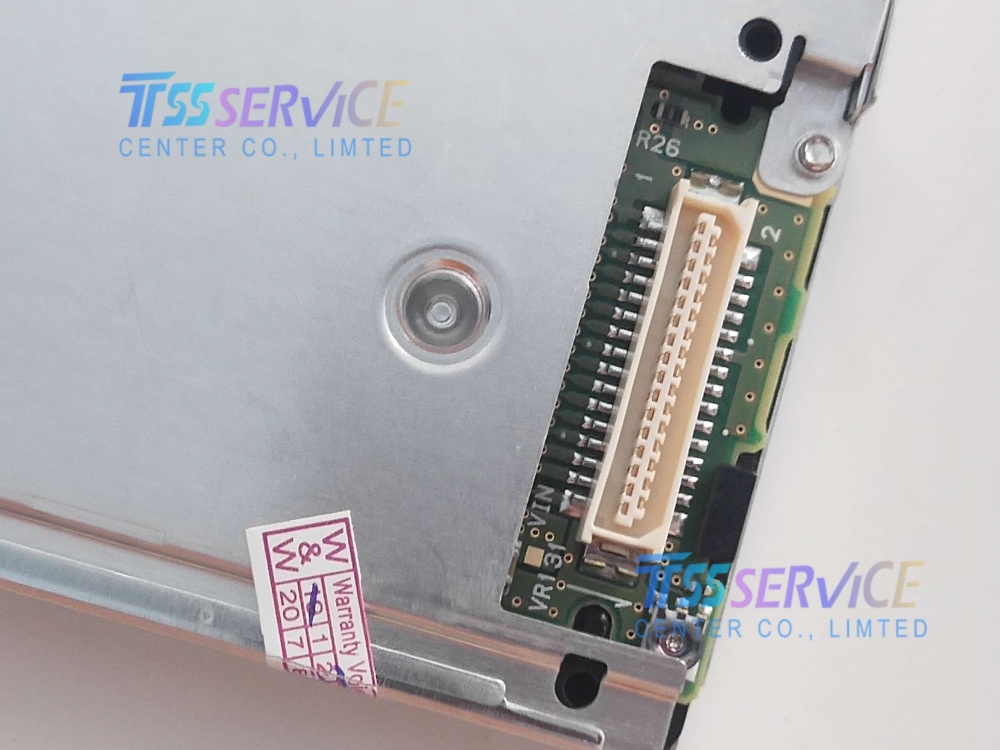

Interface	CMOS (1 ch, 6-bit) , 31 pins Connector
Supply Voltage	3.3V (Logic), 5.0V (Backlight)
Operating Temperature	-10 ~ 70 °C
Storage Temperature	-30 ~ 80 °C
Mounting	Metal frame with mounting holes
Status	IN STOCK (Industrial legacy panel, available from specialist distributors)
