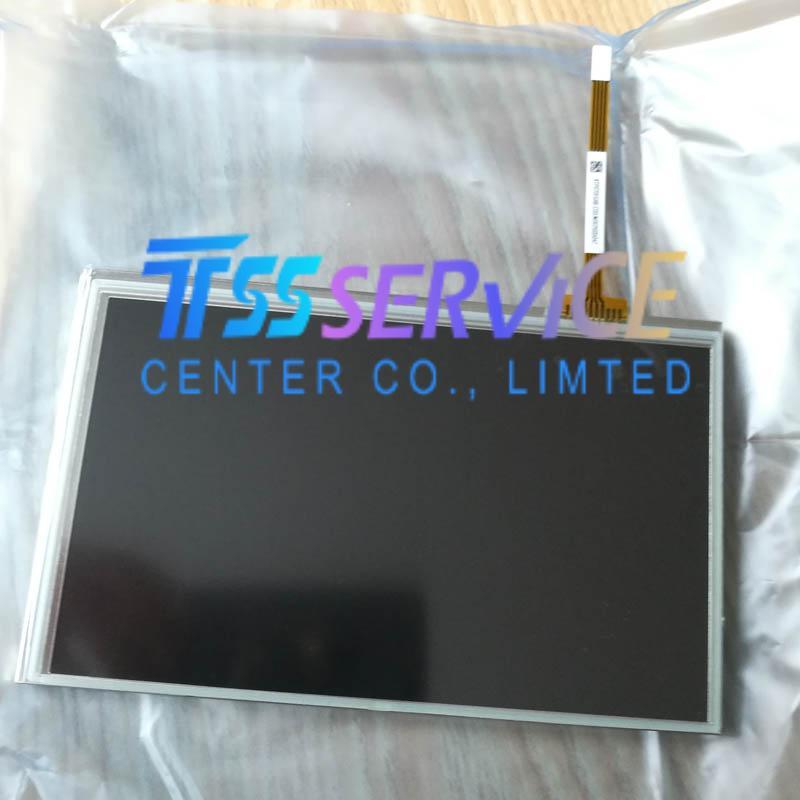

TCG070WVLQAPGK-AC00 7.0Inch 800*480 WLED a-Si TFT-LCD Display Module

Name: TCG070WVLQAPGK-AC00 7.0Inch 800*480 WLED a-Si TFT-LCD Display Module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG070WVLQAPGK-AC00
Price: 150 USD
Availability: InStock

SKU: TCG070WVLQAPGK-AC00

1，Condition: New，Grade A

2，Description: TCG070WVLQAPGK-AC00 7.0 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$157.00~~ $150.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The TCG070WVLQAPGK-AC00 is a high-performance 7.0-inch a-Si TFT-LCD module manufactured by Kyocera. This industrial-grade display features WVGA resolution (800×480), an integrated 4-wire resistive touch panel, and a long-life WLED backlight rated for 100,000 hours. Designed for demanding environments, it offers excellent optical performance with symmetric viewing angles and a wide operating temperature range.

Parameter	Specification
Brand	Kyocera
Model P/N	TCG070WVLQAPGK-AC00
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800 × 480 (WVGA), 133 PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W) × 91.44(H) mm
Outline Dim. (H×V×D)	162.3 × 104.4 × 10.64 mm
Surface Treatment	Anti Fingerprint, Hard coating (3H)
Luminance	280 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
View Direction	Symmetry
Response Time	12/18 (Typ.)(Tr/Td)
Viewing Angle	85/85/85 (Typ.)(CR≥10)
Operating Mode	AWW, Normally Black, Transmissive
Support Color	262K (50% NTSC)
Light Source	WLED (2 strings), 100,000 hours, Without Driver
Weight	260g
Frame Rate	60Hz
Touch Panel	4-wire Resistive Touch
Interface Type	Parallel RGB (1 ch, 6-bit), 40-pin Connector
Power Supply	3.3V (Typ.)
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 80 °C

Applications

Industrial HMI (Human-Machine Interface) panels
Factory automation and process control systems
Medical equipment and patient monitoring displays
Point-of-sale (POS) terminals
Kiosks and self-service machines
Marine and navigation systems
Test and measurement instruments
