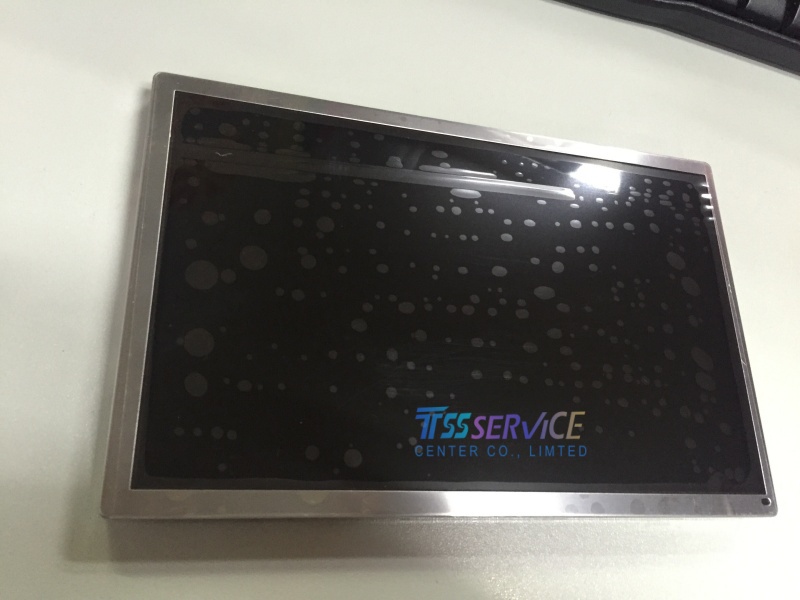

Screen Size: 7.0 inches
Resolution: 800 x 480 (WVGA)
Display Type: a-Si TFT LCD
Interface: CMOS (1 ch, 6-bit) , 40 pins Connector
Brightness: 350 cd/m² (Typ.)
| Category | Parameter | Specification / Value |
|---|---|---|

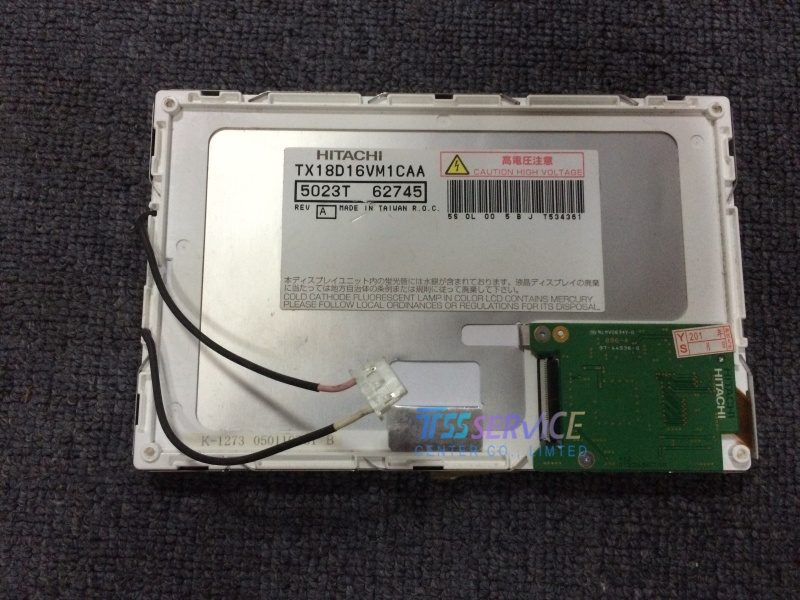

| General | Model | TX18D16VM1CAA |
| Screen Size | 7.0 inches (diagonal) | |
| Display Type | a-Si TFT LCD | |
| Aspect Ratio | 16:9 (Widescreen) | |
| Display | Resolution | 800 (RGB) x 480 pixels (WVGA) |
| Active Area (W x H) | 154.08 mm × 85.92 mm | |
| Color Depth | 16.7 million colors | |
| Brightness | ~ 300 cd/m² (Typical) | |
| Contrast Ratio | ~ 500:1 (Typical) | |
| Viewing Angle | (CR > 10) | ~ 70° (Left) / 70° (Right) / 50° (Up) / 70° (Down) |
| Interface | Signal Type | LVDS (Low-Voltage Differential Signaling) |
| Common Pin Count | 40 pins (single-channel, 6-bit) | |
| Backlight | Type | White LED, Edge-Lit |
| Typical Lifetime | 20,000 - 30,000 hours | |
| Physical | Surface Treatment | Anti-Glare Hard Coating |
| Module Dimensions (Approx.) | ~ 165.0 mm (W) × 99.0 mm (H) × 4.5 mm (D) |

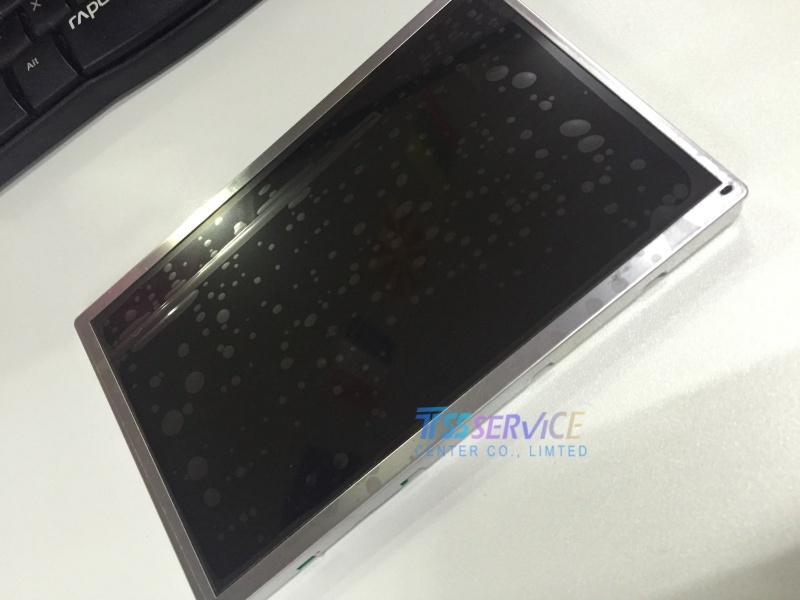

The TX18D16VM1CAA is specifically engineered for industrial use, including:
Industrial Human-Machine Interfaces (HMI)
Factory automation equipment
Test and measurement instruments
Medical monitoring devices
Portable instrumentation
Embedded control systems
Kiosk and POS terminals
