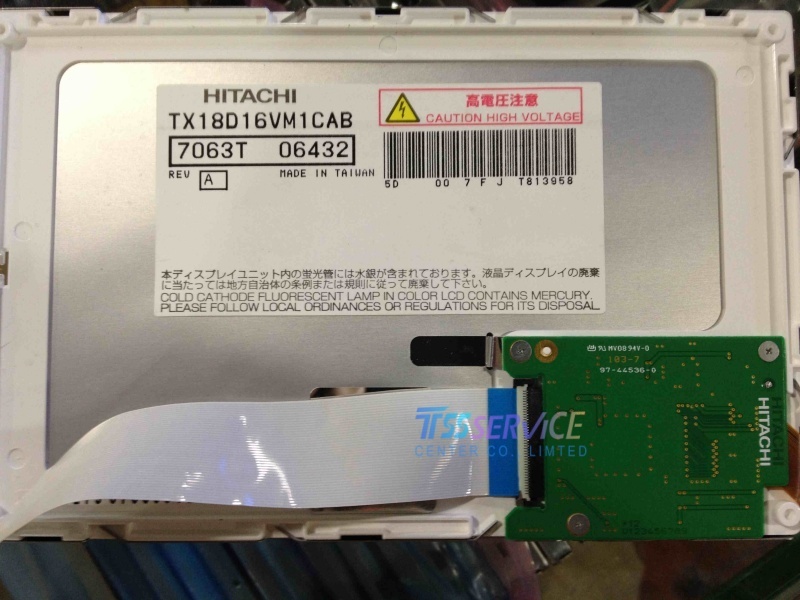

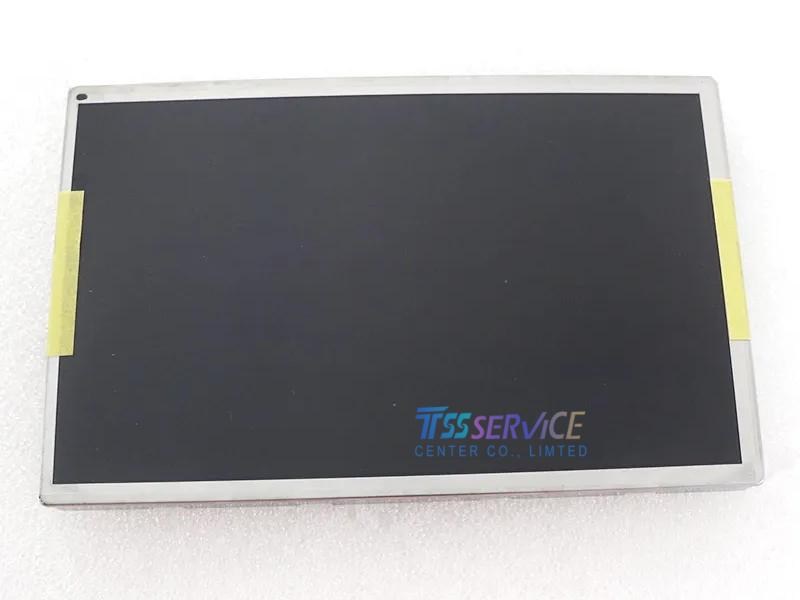

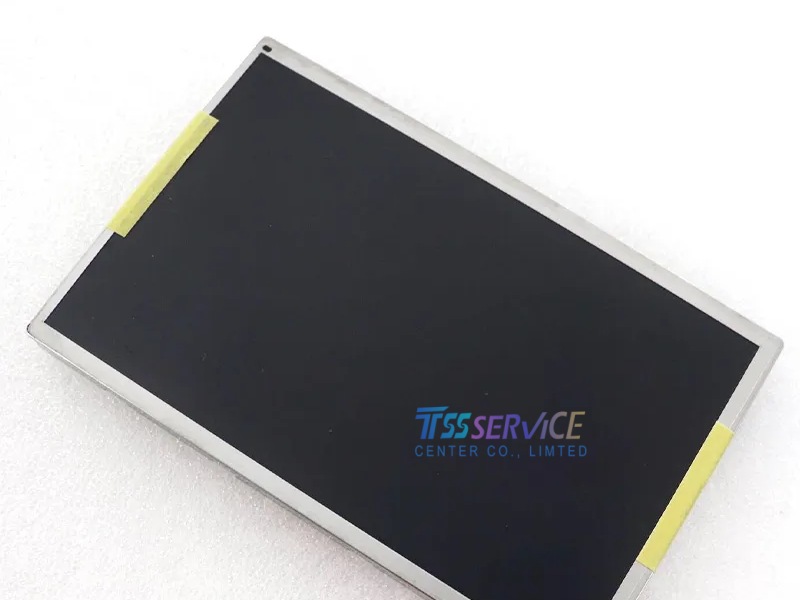

The TX18D16VM1CAB is a 7.0-inch a-Si TFT-LCD module manufactured by Hitachi. Engineered for industrial applications, this panel combines high brightness (600 cd/m²) with a proven TN (Twisted Nematic) design, making it an excellent choice for equipment requiring clear visibility in moderately bright environments and reliable operation across a wide temperature range.
| Parameter | Value |
|---|---|
| Mfr. | HITACHI |
| Model Name | TX18D16VM1CAB |
| Display Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA, 15:9 |
| Dot Layout | RGB Vertical Stripe |
| Display Area | 152.4(W)×91.44(H) mm |
| Panel Weight | 170g (Typ.) |
| Outline Size | 165(W)×106(H)×10.5(D) mm |
| Surface | Antiglare |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 200:1 (Typ.) (TM) |
| Viewing Angle | 50/50/50/50 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| View Direction | 6 o'clock |
| Response Time | 20/10 (Typ.)(Tr/Td) ms |
| Display Colors | 262K, 60% NTSC |
| Touch Screen | Without |
| Light Source | 1 pcs CCFL, Without Driver |
| Frequency | 60Hz |
| Interface | CMOS (1 ch, 6-bit), 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration | 2.0G (19.6 m/s²) |
