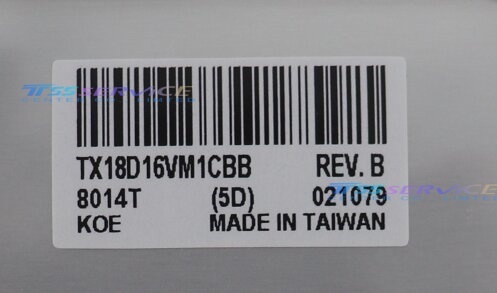

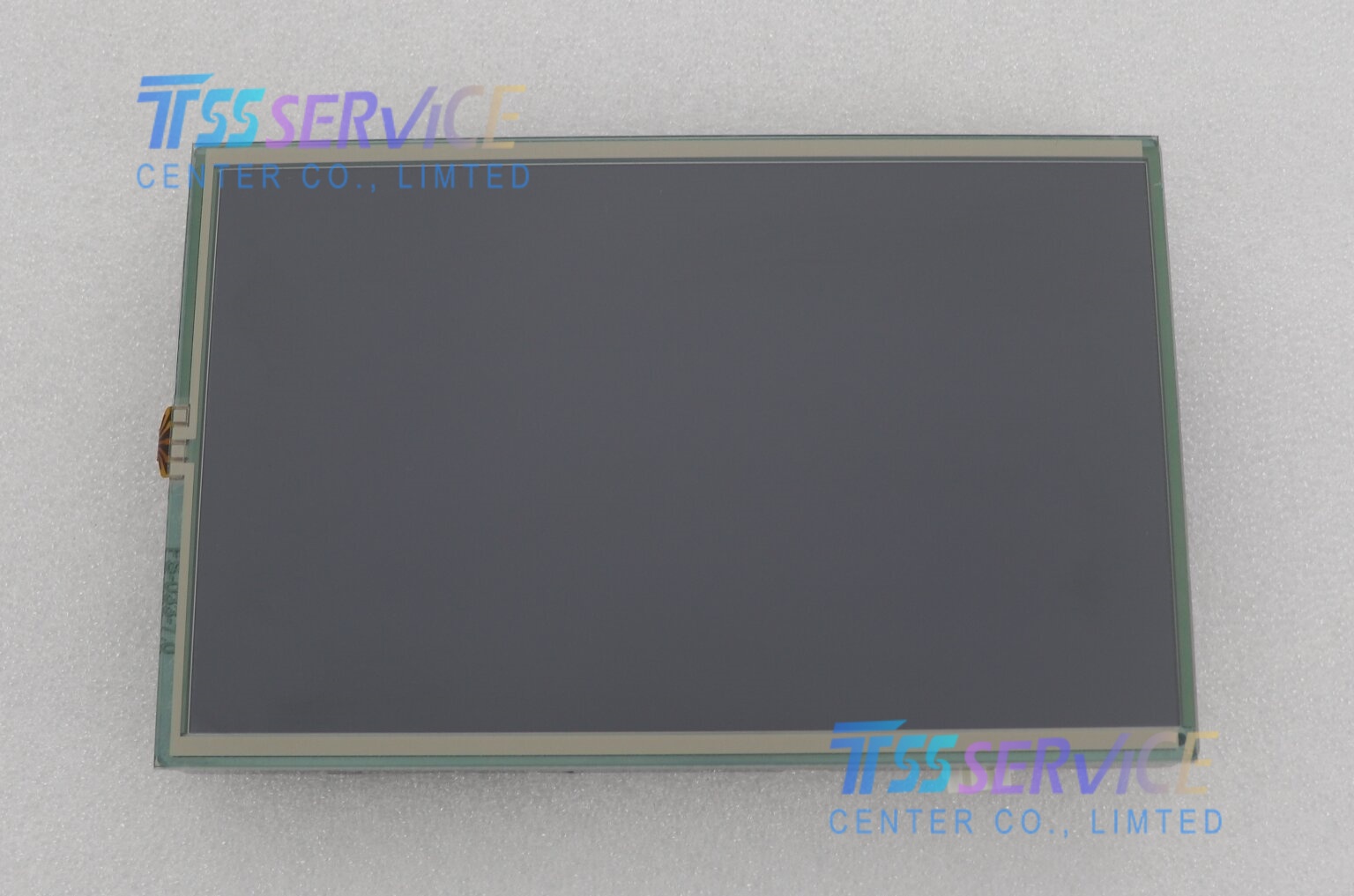

The TX18D16VM1CBB is a 7.0-inch a-Si TFT-LCD module manufactured by Hitachi (now part of KOE – Kaohsiung Opto-Electronics). Designed specifically for demanding industrial and medical environments, this panel integrates a 4-wire resistive touch screen, making it an ideal human-machine interface (HMI) solution for applications requiring reliable, glove-friendly user input.
| Feature Category |
Specification |
| Display |
7.0-inch a-Si TFT LCD (Hitachi) |
| Resolution |
800(RGB)×480, WVGA 133PPI |
| Brightness |
480 cd/m² (Typ.) |
| Viewing Angle |
50/50/50/50 (Min.)(CR≥10) |
| Interface |

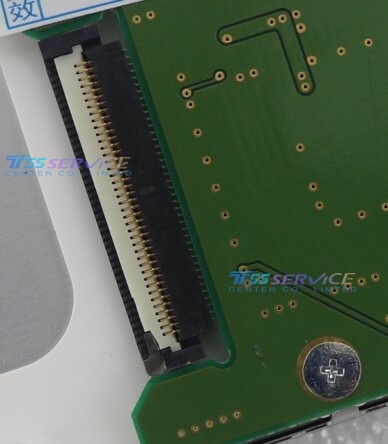

CMOS (1 ch, 6-bit) , 40 pins Connector |
| Touch Screen |
4-wire Resistive Touch |
| Touch Interface |
Separate 4-pin FPC/Connector (X+, X-, Y+, Y-) |
| Integration |
Touch Panel is Laminated (Bonded) onto the LCD, providing a compact, single-unit design. |
Applications
The TX18D16VM1CBB is specifically designed for industrial and medical applications, including:
-
Industrial Human-Machine Interfaces (HMI) – Factory automation and control panels
-
Medical Equipment – Patient monitoring devices, diagnostic instruments
-
Test and Measurement Instruments – Portable and benchtop equipment
-
Outdoor Kiosks – Information terminals, ticketing machines
-
Marine and Navigation Systems – Bridge displays, chartplotters
-
Transportation – Vehicle-mounted displays, fleet management systems
