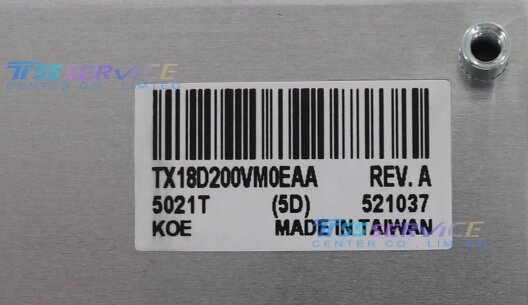

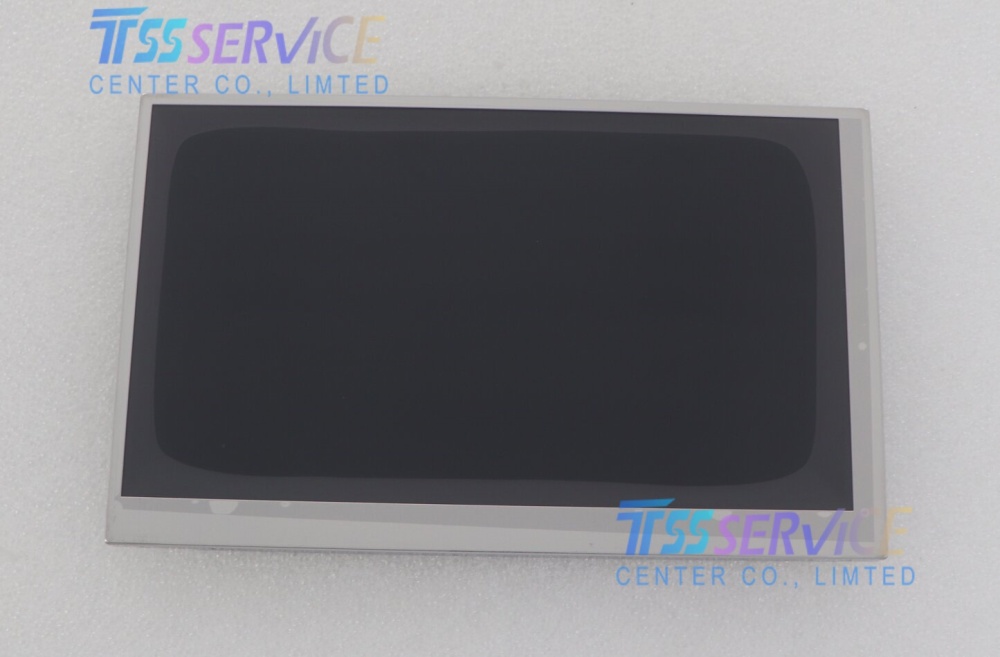

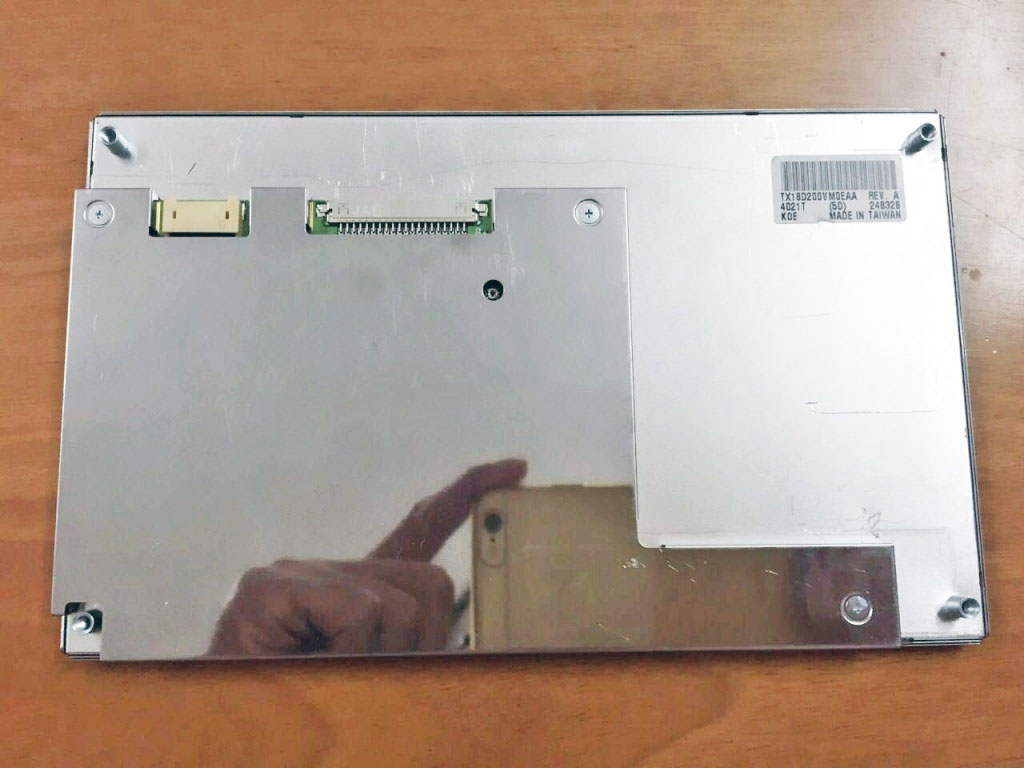

The TX18D200VM0EAA is a 7.0-inch Full HD (FHD) TFT-LCD display module manufactured by KOE , formerly Hitachi, and now part of the JDI (Japan Display Inc.) group. This model is a pioneering product in the industrial display market, being one of the first 7.0-inch modules to offer Full HD resolution specifically designed for demanding professional applications.
| Parameter |
Specification |
| Mfr |
KOE |
| Model Name |
TX18D200VM0EAA |
| Display Size |
7.0" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1920(RGB)×1080, 16:9, FHD |
| Pixel Format |
RGB Vertical Stripe |
| Display Area |
155.52(W) × 87.48(H) mm |
| Outline Size |
169(W) × 104(H) × 10.3(D) mm |
| Panel Weight |
180g (Typ.) |
| Brightness |
1200 cd/m² (Typ.) |
| Contrast Ratio |
1300:1 (Typ.) (TM) |
| Viewing Angle |
85/85/85/85 (Typ.) (CR ≥ 10) |
| Display Mode |
IPS Pro, Normally Black, Transmissive |
| View Direction |
Symmetry |
| Response Time |
23 ms (Typ.) (Tr + Td) |
| Display Colors |
16.7M, 90% DCI-P3 |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Power Consumption |
5.15W (Typ.) |
| Light Source |
3S10P WLED, 70K hrs, With LED Driver |
| Interface |
LVDS (1 ch, 8-bit), 20 pins Connector |
| Input Voltage |
3.3V (Typ.) |
| Operating Temperature |
-40 ~ 85 °C |
| Storage Temperature |
-40 ~ 90 °C |
| Vibration Resistance |
5.0G (49.0 m/s²) |
Applications
The TX18D200VM0EAA is optimized for professional and industrial applications requiring high resolution, excellent color accuracy, and reliability. Key applications include:
