Home > LCD Display > KOE/HITACHI > 7" > TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
1/1
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA

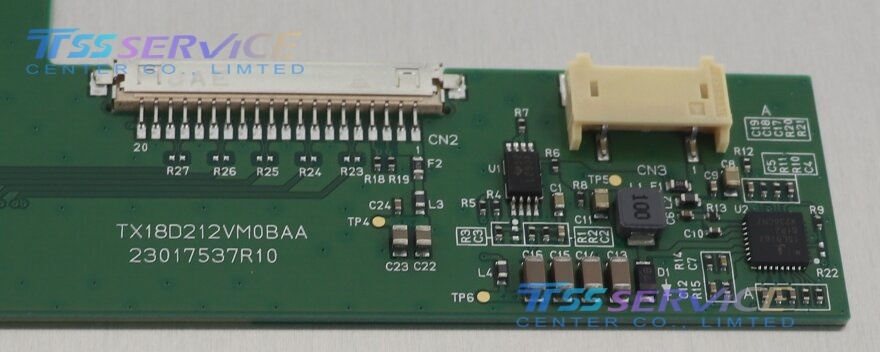

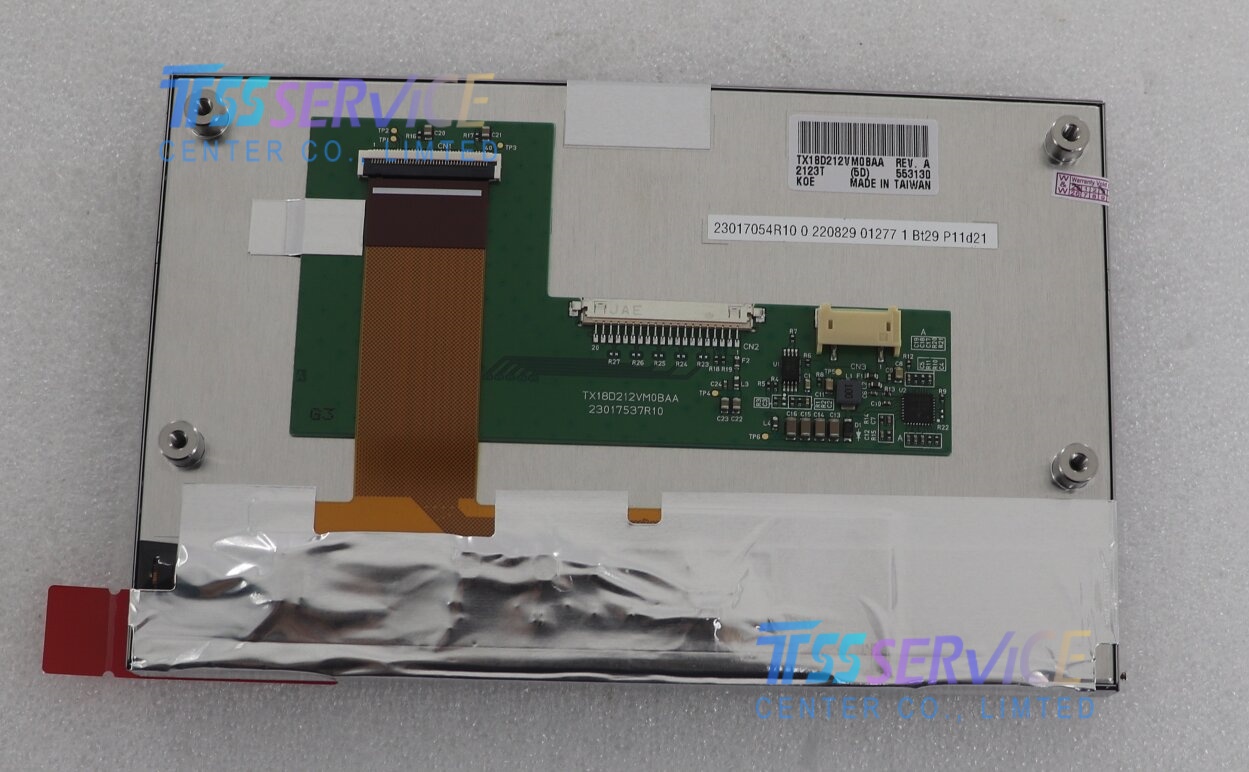

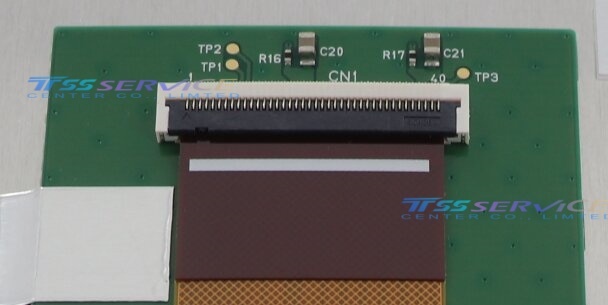

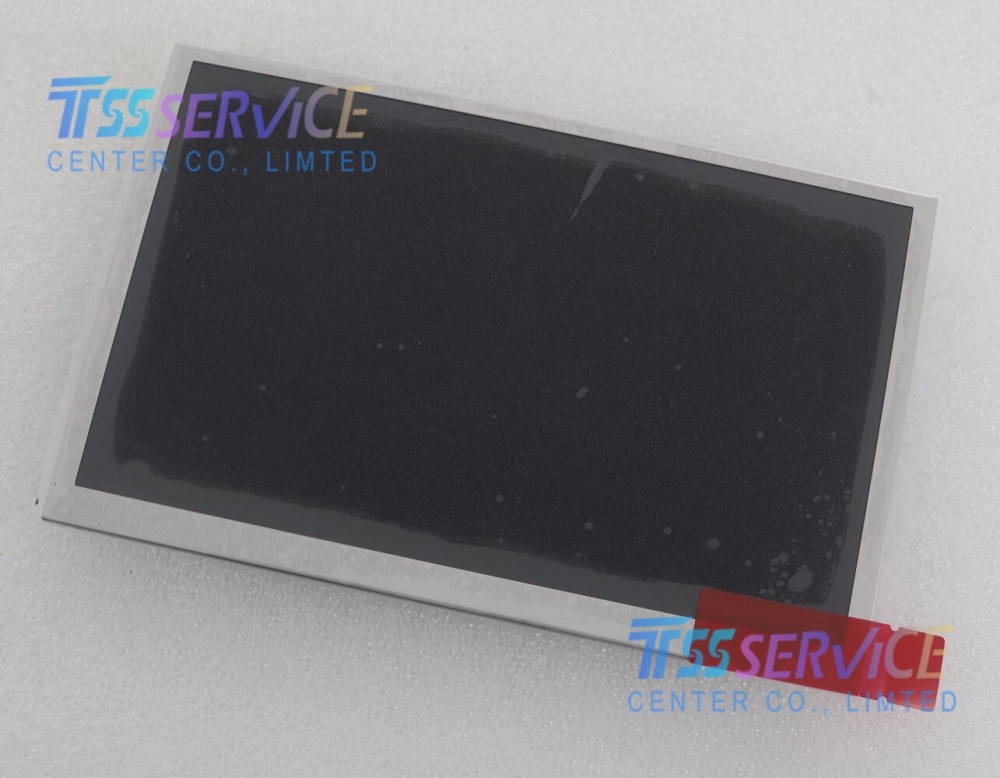

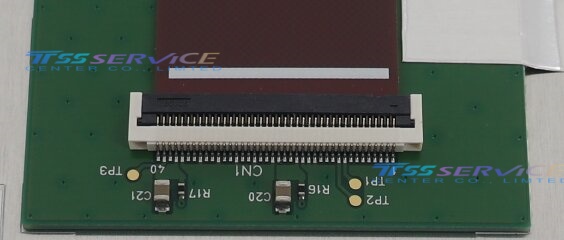

7.0INCH LCD PANEL TX18D212VM0BAA for KOE/HITACHI

SKU: TX18D212VM0BAA
Model P/N:TX18D212VM0BAA
Diagonal Size: 7.0"
Panel Type: a-Si TFT-LCD, LCM
Resolution:1280(RGB)×768, WXGA  213PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$210.00 $205.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
1/1
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • 7.0INCH TFT-LCD TX18D212VM0BAA
  • Description
The TX18D212VM0BAA is a high-performance 7.0-inch TFT-LCD module designed for applications that demand superior visual clarity, high resolution, and reliable performance in demanding environments. This display belongs to a family of advanced 7-inch panels, balancing excellent optical characteristics with industrial-grade durability.
Category Parameter Specification / Note
General Model TX18D212VM0BAA
Display Type a-Si TFT-LCD, LCM
Screen Size 7.0 inches
Display Resolution 1280(RGB)×768, WXGA  213PPI
Brightness (Typ.) 1500 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Interface Interface Type RGB Vertical Stripe
Electrical Operating Voltage 3.3V (Logic)
Backlight LED
Environmental Operating Temp. -30°C to +80°C
Applications Typical Use Medical, Automotive, Industrial HMI, Instrumentation

Applications

The TX18D212VM0BAA is optimized for demanding environments requiring high reliability, sunlight readability, and wide operating temperature ranges :

Application Area Specific Use Cases
Aerospace & Avionics Primary Flight Displays (PFD), Navigation Displays, Engine Indication and Crew Alerting System (EICAS), Electronic Flight Bag (EFB) functions, glass cockpit retrofits
Defense & Military Mission computers, tactical moving maps, sensor feeds (radar/FLIR), flight data displays in fighters, helicopters, transport aircraft
Industrial Control Human-Machine Interfaces (HMIs) for factory automation, heavy machinery, process control panels
In-Vehicle & Transportation Navigation systems, fleet management displays, railway information systems, public transport displays
Marine Navigation displays, radar screens, bridge instrumentation
Medical Equipment Patient monitoring systems, diagnostic instruments, surgical displays (high reliability in critical environments)
Outdoor Terminals Payment kiosks, EV charging stations, vending machines, public information displays
Commercial Aviation Business aviation glass cockpit retrofits, moving maps, terrain awareness systems (SVS), flight management systems
