Condition: New
Warranty: 90 Days
Lead Time: 1-3 Working days
Shipping: DHL ,FedEx, EMS , SF express or by air.
Packaging: Bubble pad+Paper box
| Parameter | Specification |
|---|---|

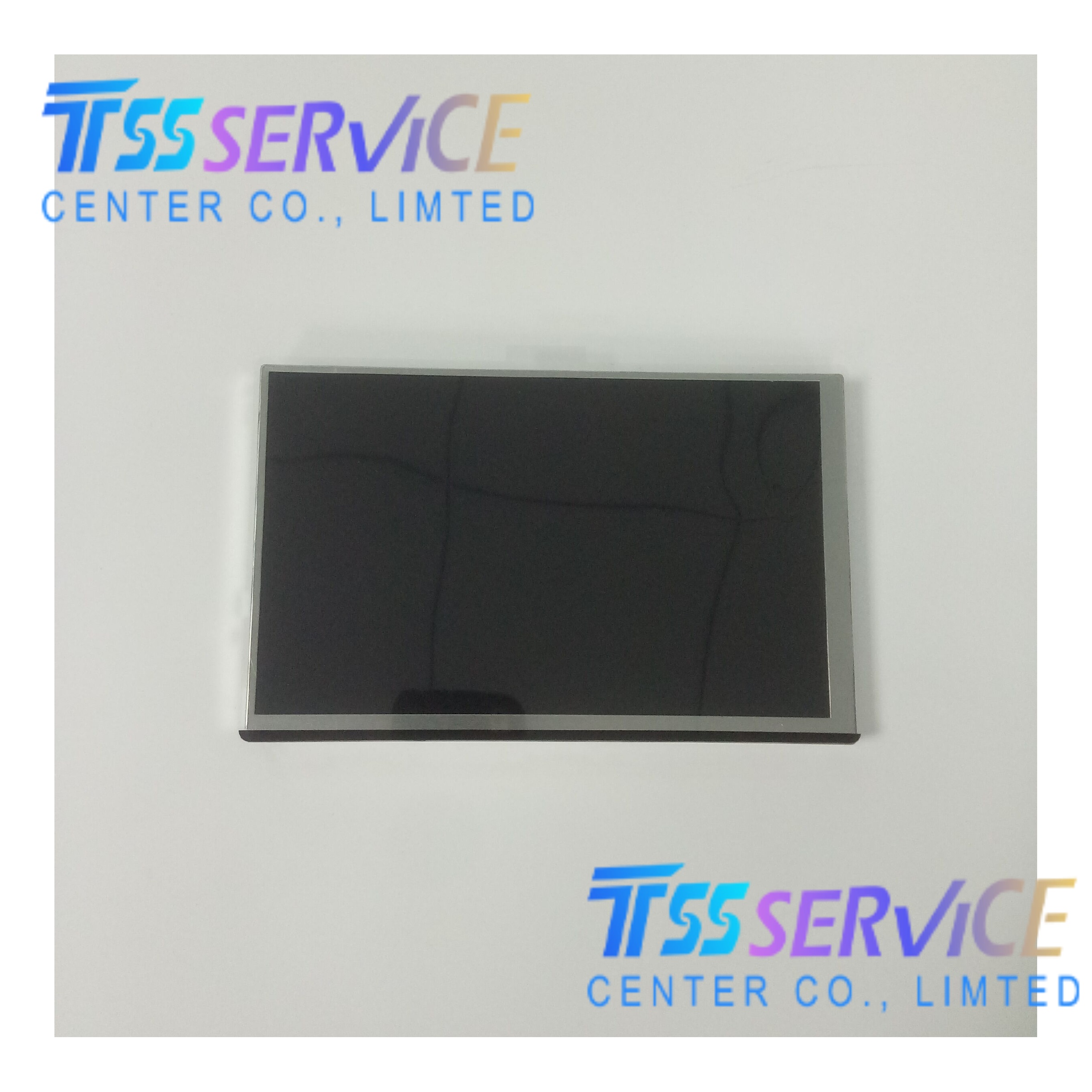

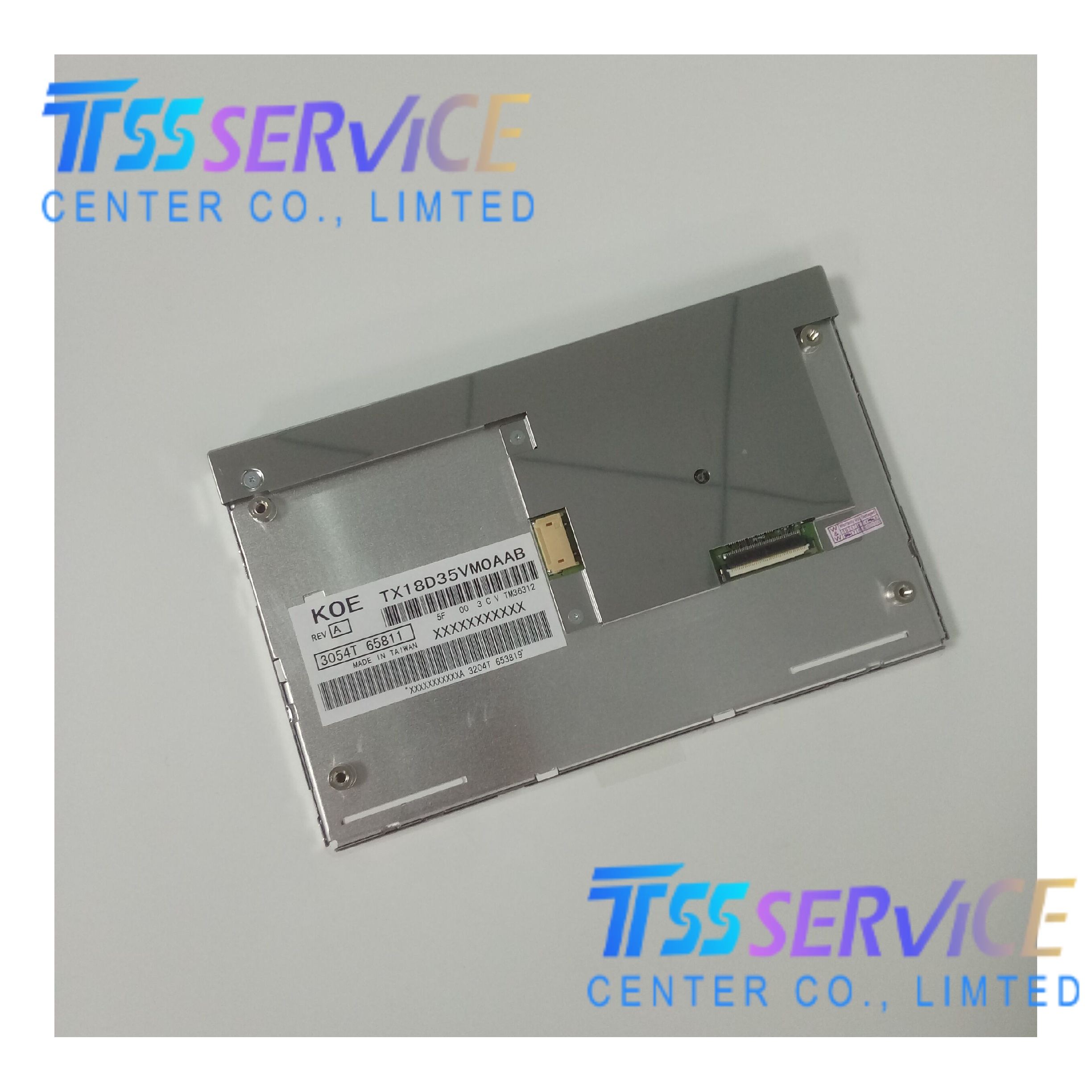

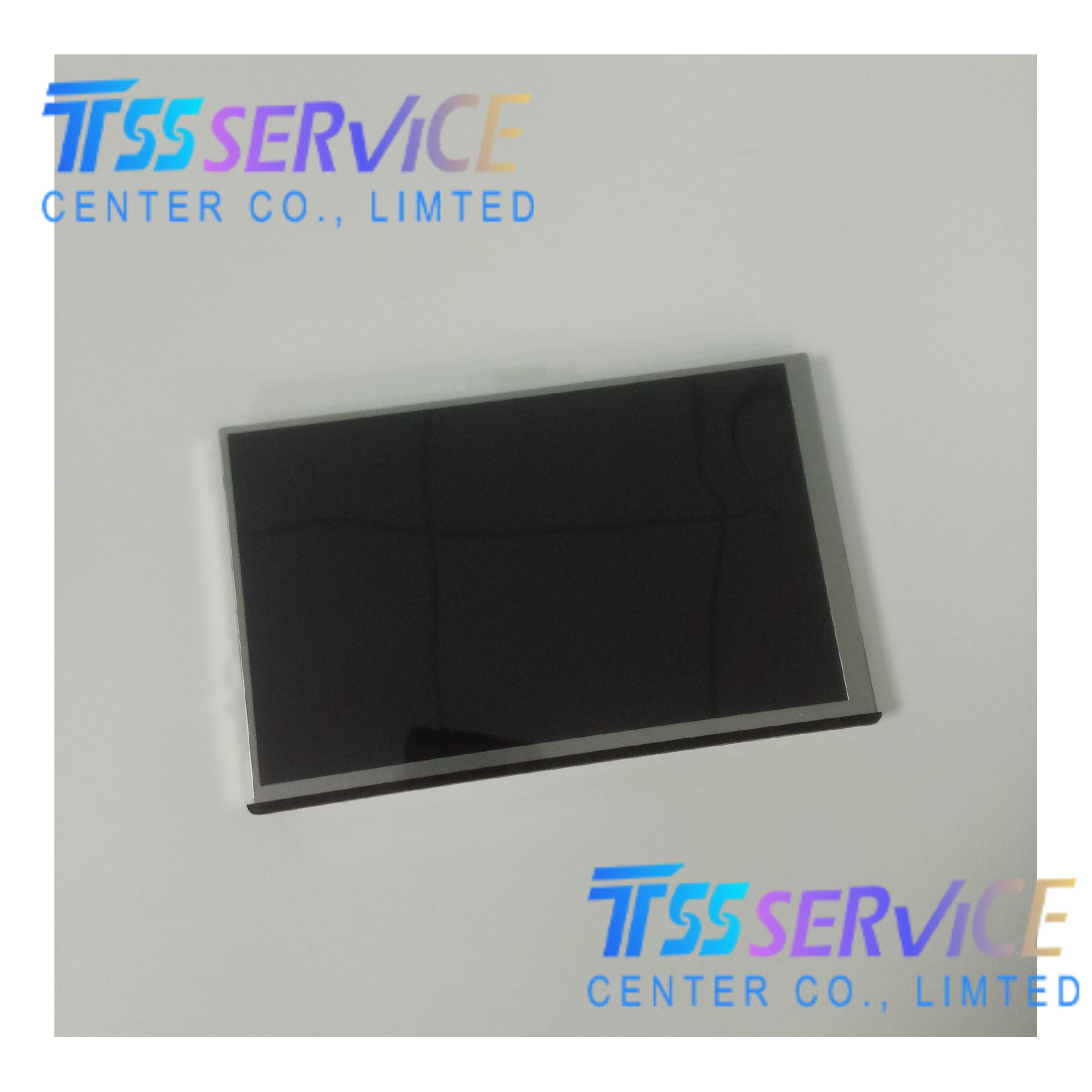

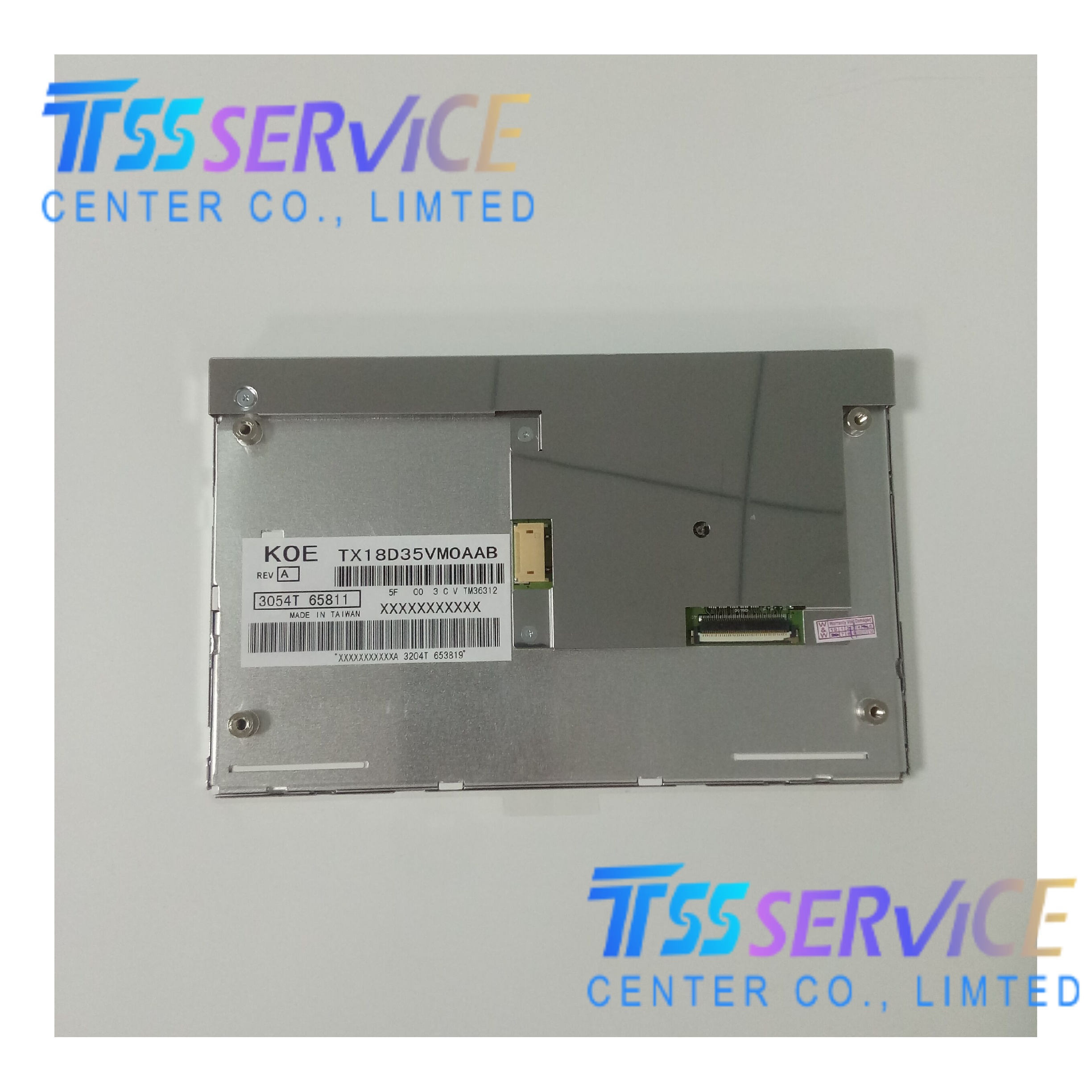

| Model Number | TX18D35VM0AAB |
| Manufacturer | KOE (Kyocera Optoelectronics) / Formerly Hitachi |
| Display Type | a-Si TFT-LCD Module |
| Screen Size | 7.0 inches (Diagonal) |
| Resolution | 800 (RGB) × 480 pixels (WVGA) |
| Aspect Ratio | 16:9 (Approximate) |
| Active Area (AA) | 152.40 (W) × 91.44 (H) mm |
| Outline Dimensions | 165.0 (W) × 104.0 (H) × ~13.3 (D) mm (Typical) |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Colors | 262K colors (6-bit per color) |
| Brightness | 450 cd/m² (Typical) |
| Contrast Ratio | 400:1 (Typical) |
| Viewing Angle | 80/80/80/80 (Min.) (Left/Right/Up/Down) |
| Backlight Type | White LED (WLED), 1 string |
| Interface Type | CMOS (TTL) Parallel RGB |
| Signal Configuration | 1 channel, 6-bit |
| Connector | 40-pin FPC/Connector (Specific pinout may vary by "AAB" suffix) |
| Power Supply Voltage | 3.3V (Typical) for Logic |
| Operating Temperature | -20°C to +70°C (Standard); Some variants support wider ranges |
| Storage Temperature | -30°C to +80°C |
| RoHS Compliance | Yes |
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
