Condition: New
Warranty: 90 Days
Lead Time: 1-3 Working days
Shipping: DHL ,FedEx, EMS , SF express or by air.
Packaging: Bubble pad+Paper box
| Parameter | Specification |
|---|---|

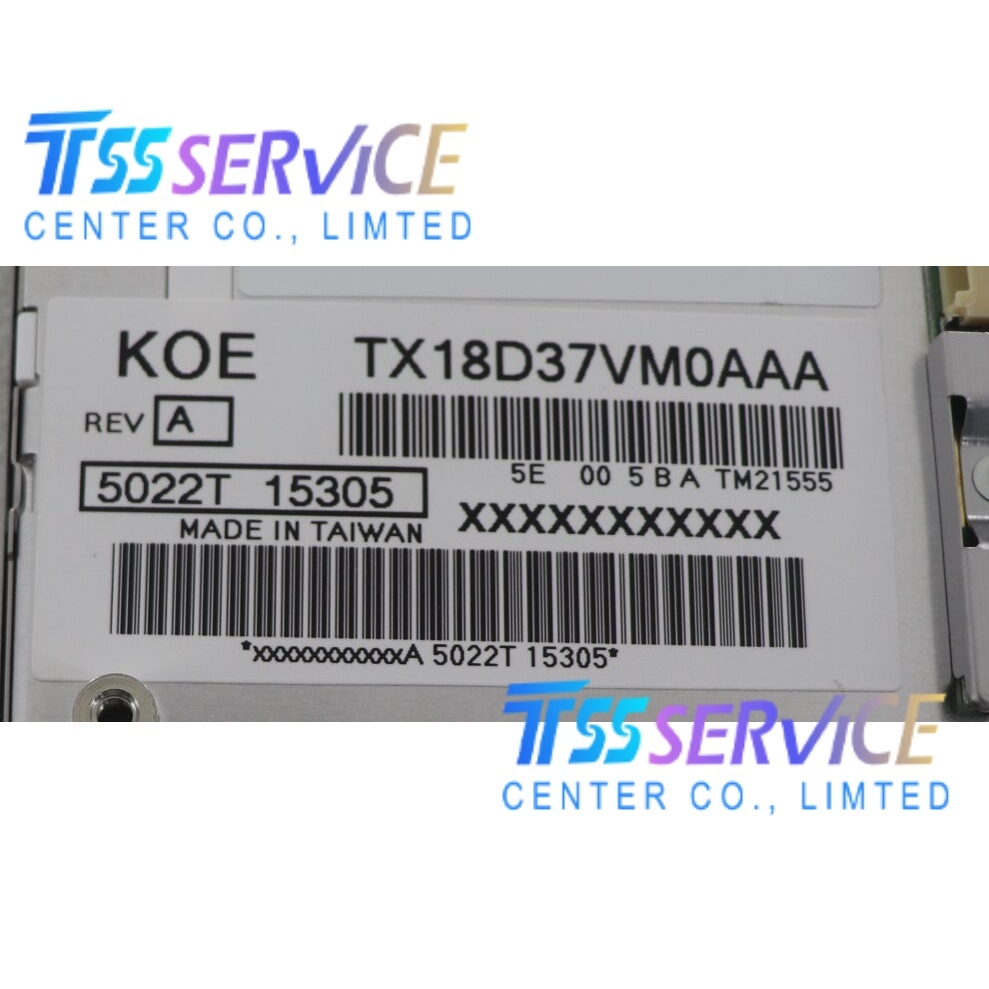

| Model Number | TX18D37VM0AAA |
| Manufacturer | KOE (Kyocera Optoelectronics) |

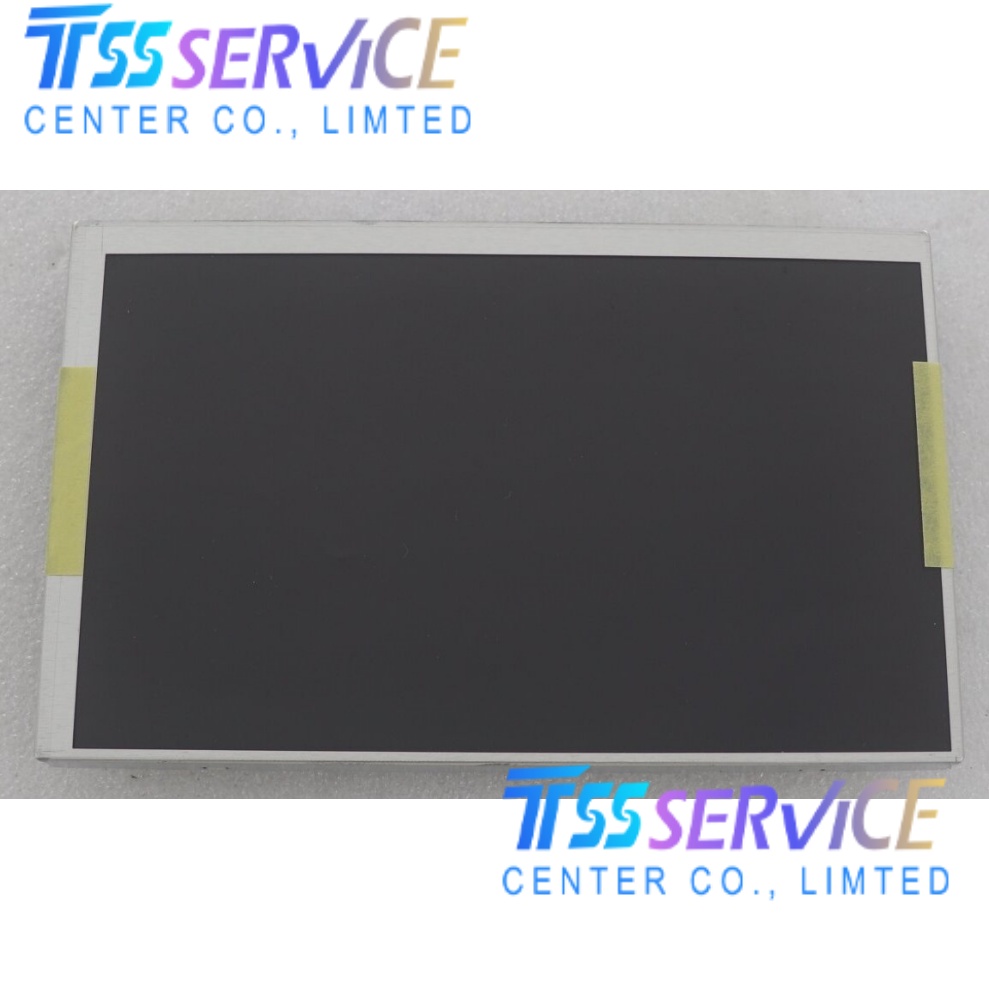

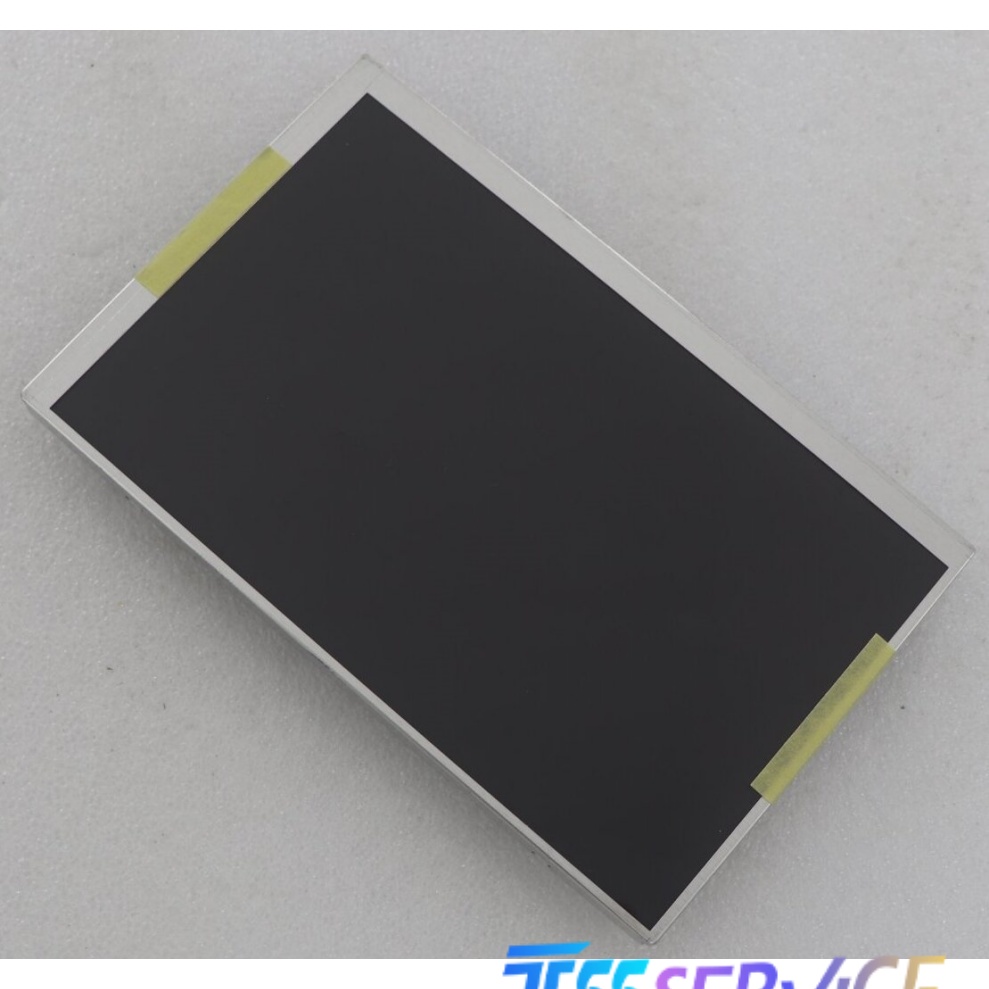

| Display Type | a-Si TFT-LCD Module (Transmissive) |
| Screen Size | 7.0 inches (Diagonal) |
| Resolution | 800 (RGB) × 480 pixels (WVGA) |
| Aspect Ratio | 16:9 (Approximate) |
| Active Area (AA) | 154.08 (W) × 85.92 (H) mm (Typical for this series) |
| Outline Dimensions | ~165.0 (W) × 100.0 (H) × ~10-14 (D) mm (Varies by bezel/connector) |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Colors | 262K colors (6-bit per color) / 16.7M (with dithering if supported) |
| Brightness | 500 cd/m² (Typical) - Higher than the older 450 nits models |
| Contrast Ratio | 500:1 (Typical) |
| Viewing Angle | 80/80/80/80 (Min.) or 85/85/85/85 (Left/Right/Up/Down) |
| Backlight Type | White LED (WLED), Side-light or Direct-type (depending on revision) |
| Backlight Driver | Integrated or External (Check specific datasheet for "VM0" variant) |
| Interface Type | CMOS (TTL) Parallel RGB |
| Signal Configuration | 1 channel, 6-bit (RGB666) |

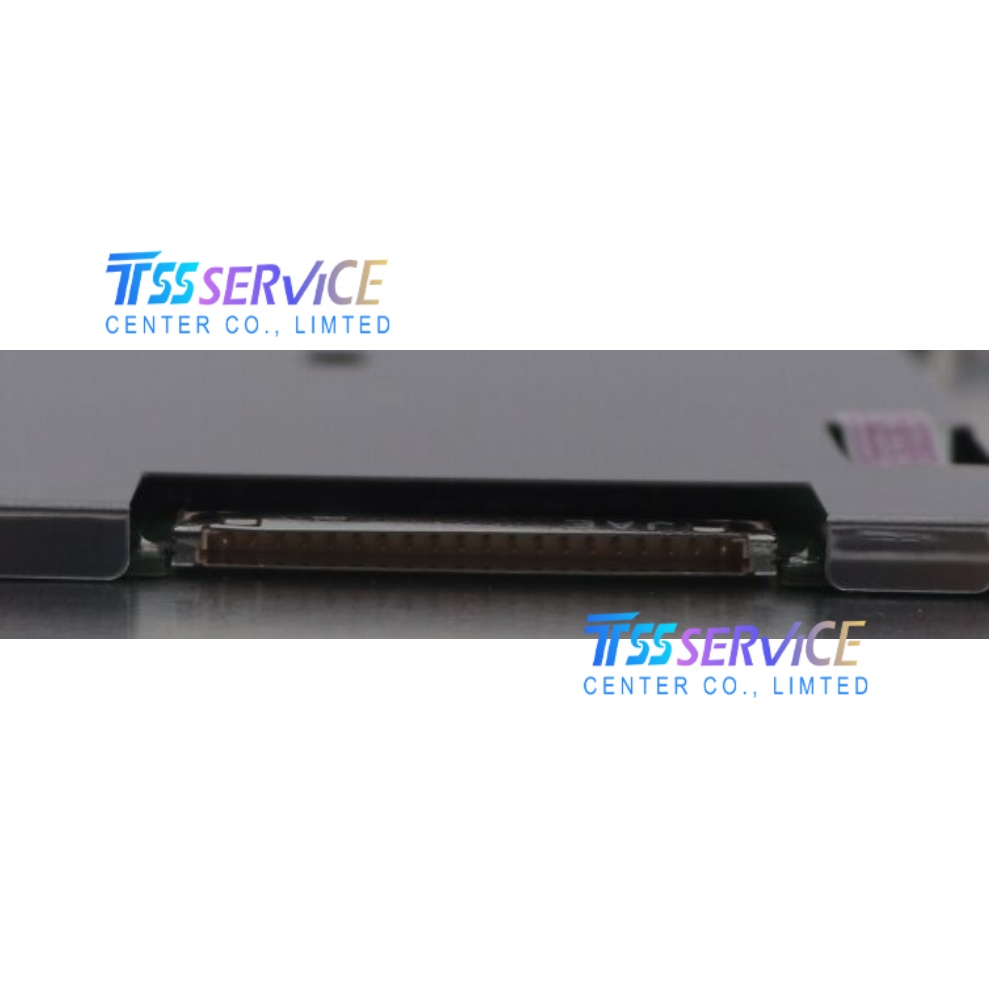

| Connector | 40-pin or 50-pin FPC Connector (Pitch 0.5mm or 0.4mm) |
| Power Supply Voltage | 3.3V (Logic), Backlight voltage varies (usually 12V-20V range for LED string) |
| Operating Temperature | -30°C to +80°C (Wide Temperature Industrial Grade) |
| Storage Temperature | -40°C to +90°C |
| RoHS / REACH | Compliant |
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
